Tolomeo Micro Floor LED 2700K - Aluminum - Body Lamp

IP20

Downloadable files

2D Model
  • Tolomeo Micro Terra_2D.dwg
  • Tolomeo Micro Terra_2D.dxf
3D Model
  • Tolomeo Micro Terra_3D.3ds
  • Tolomeo Micro Terra_3D.stp
Silhouette
  • Tolomeo Micro Terra_Silouette.jpg
Instructions
  • Y513000777B F_IS TOLOMEO MICRO LED.pdf
DiaLux ULD File
  • A010300+A043900.uld
IES Europe
  • A0103W00.IES
IES USA
  • A010300.IES
  • A0103W00.IES
LDT File
  • A0103W00.LDT
LDT PDF
  • A0103W00.PDF
FEATURES
  • Product Code: A0103W00
  • Colour: Aluminum
  • Installation: Floor
  • Material: Aluminium, steel
  • Series: Design Collection
  • design by: Michele De Lucchi, Giancarlo Fassina
LUMINAIRE
  • Watt: 7W
  • Voltage: 24V
  • Delivered lumen output: 620lm
  • CCT: 2700K
  • Efficiency: 71%
  • Efficacy: 88.63lm/W
  • CRI: 90
  • Dimmer Typology: Microswitch Dimmer

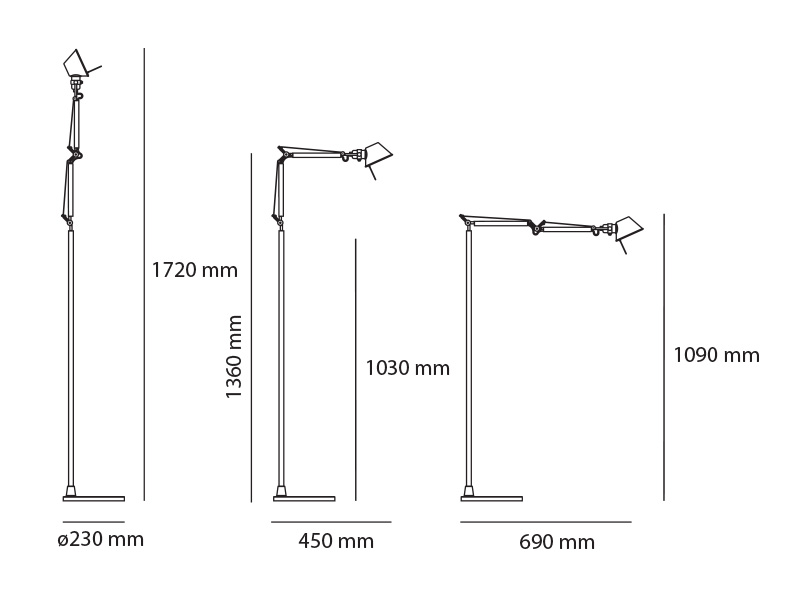

DIMENSIONS
  • Height: 1090 mm
  • Base Diameter: 230 mm
  • Max Extension Height: 1720 mm
  • Max Extension Length: 690 mm
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 4,8W
  • Color temperature (K): 2700K
  • CRI: 90
Notes

Complete lamp consists of body lamp + accessories

Accessories
Aluminum sliding stand (allows a second Tolomeo to be placed on the same floor support)
A014000
Floor support aluminium
A043900
