Choose Wall IP23 - White

IP23 Dimmerable:

Downloadable files

2D Model
  • Choose_parete_2D.dwg
  • Choose_parete_2D.dxf
3D Model
  • Choose_parete_3D.3ds
  • Choose_parete_3D.stp
Silhouette
  • Choose_parete_sil.jpg
Instructions
  • Y503001087B F_IS CHOOSE WALL.pdf
IES Europe
  • 1142020A.IES
IES USA
  • 1142020A.IES
LDT File
  • 1142020A.LDT
LDT PDF
  • 1142020A.PDF
FEATURES
  • Product Code: 1142110A
  • Colour: Transparent + Natural
  • Installation: Wall
  • Material: polycarbonate, parchment
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality
  • Emission: Direct Spot
  • design by: Matteo Thun & Partners
LUMINAIRE *
  • Watt: 5W
  • Voltage: 220V-240V
  • Delivered lumen output: 349lm

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

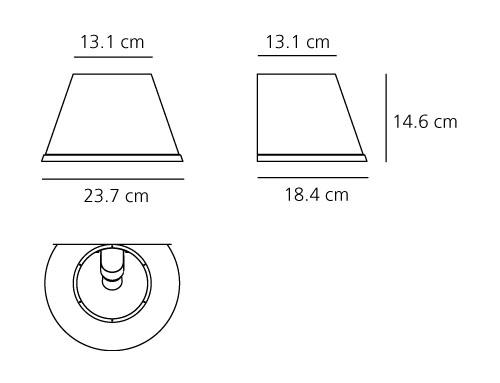

DIMENSIONS
  • Width: 237 mm
  • Height: 146 mm
  • Depth: 184 mm
  • Impact Resistance: N/D
  • Glow Wire Test: 750°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 6W
  • Socket: E14
Notes

On/off switch on body lamp.
