Itka 35 Wall/Ceiling

IP65

Downloadable files

2D Model
  • Itka Parete-Soffitto 35.dxf
3D Model
  • Itka Parete-Soffitto 35.3ds
  • Itka Parete-Soffitto 35.stp
Silhouette
  • Itka 35 wall/ceiling
Instructions
  • Y513000617-FOGLIO ISTR- ITKA 35 C-W.pdf
IES Europe
  • DX0060I10.IES
IES USA
  • DX0060I10.IES
LDT File
  • DX0060I10.LDT
LDT PDF
  • DX0060I10.PDF
FEATURES
  • Product Code: DX0060I10
  • Colour: White
  • Installation: Wall, Ceiling
  • Material: Blown glass, steel
  • Series: Design Collection, Danese
  • Environment: Indoor
  • design by: Naoto Fukasawa
LUMINAIRE *
  • Watt: 15W
  • Delivered lumen output: 1047lm
  • Efficiency: 74%
  • Efficacy: 69.81lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

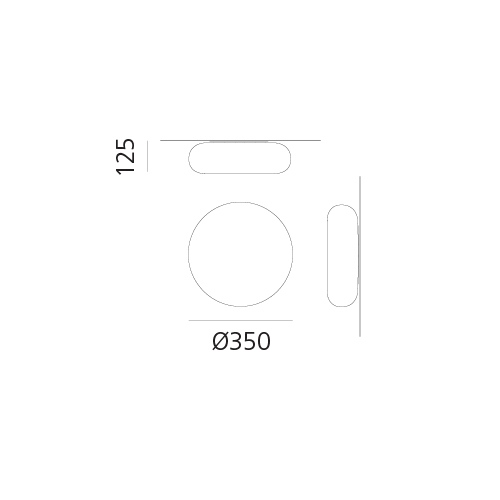

DIMENSIONS
  • Width: 125 mm
  • Diameter: 350 mm
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 3
  • Watt: MAX 6W
  • Socket: E14
Download all Data sheet PDF
