Itka 50 Suspension

IP20

Downloadable files

2D Model
  • Itka 50 suspension.dxf
3D Model
  • Itka 50 suspension.3ds
  • Itka 50 suspension.stp
Silhouette
  • Itka 50 suspension
Instructions
  • Y513000619-FOGLIO ISTR- ITKA 50 S.pdf
IES Europe
  • DX0060B10.IES
IES USA
  • DX0060B10.IES
LDT File
  • DX0060B10.LDT
LDT PDF
  • DX0060B10.PDF
FEATURES
  • Product Code: DX0060B10
  • Colour: White
  • Installation: Suspension
  • Material: Blown glass, steel
  • Series: Design Collection, Danese
  • Environment: Indoor
  • design by: Naoto Fukasawa
LUMINAIRE *
  • Watt: 36W
  • Delivered lumen output: 3000lm
  • Efficiency: 66%
  • Efficacy: 83.34lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

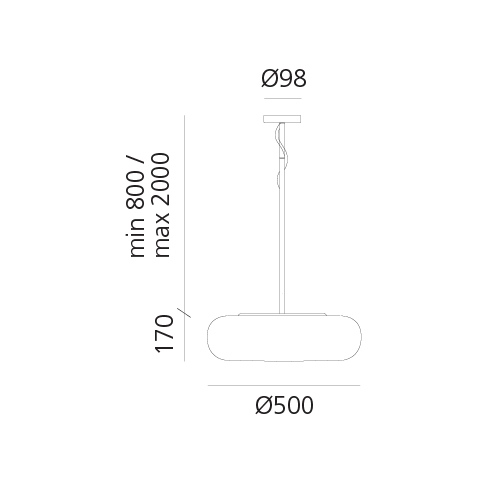

DIMENSIONS
  • Height: 170 mm
  • Diameter: 500 mm
  • Base Diameter: 98 mm
  • Max Extension Height: 2000 mm
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 3
  • Watt: MAX 12W
  • Socket: E27
Download all Data sheet PDF
