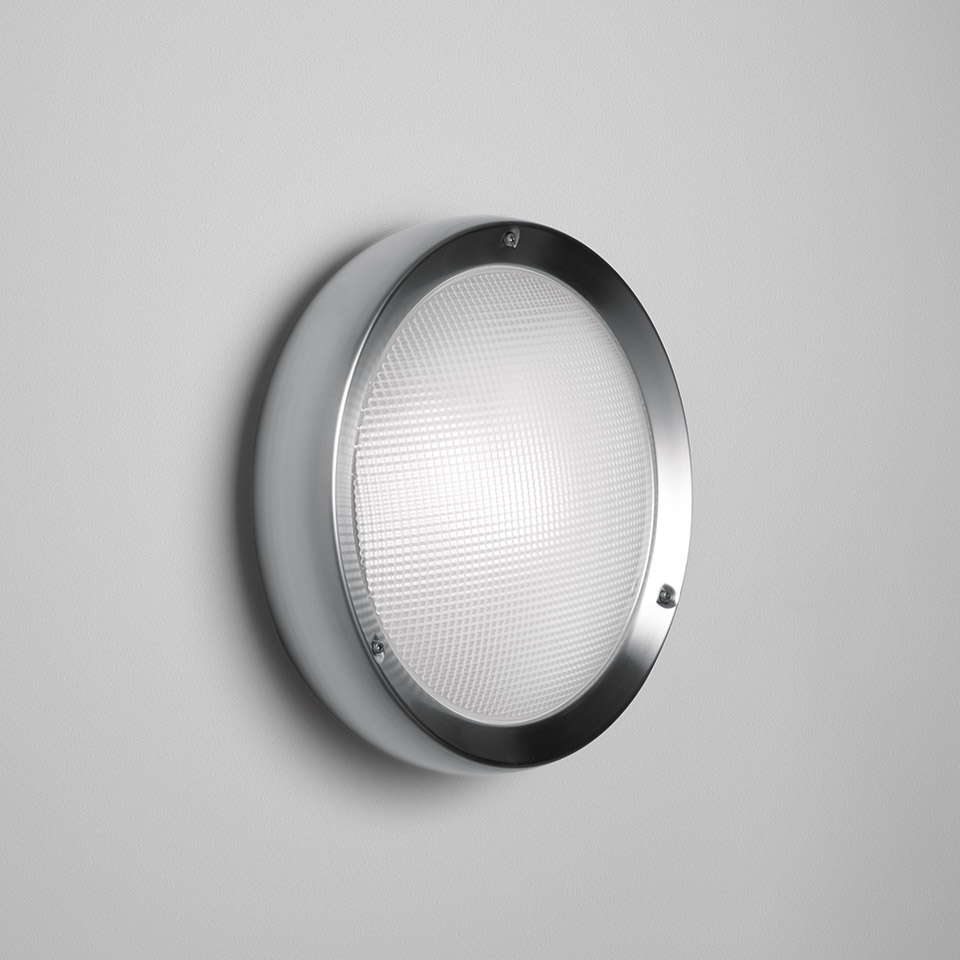

Niki LED Retrofit Satin

IP65

Downloadable files

2D Model
  • Niki.dwg
  • Niki.dxf
3D Model
  • Niki.3ds
  • Niki.stp
Silhouette
  • Niki.jpg
Instructions
  • Y503000448F F_IS NIKI 312.pdf
IES Europe
  • AH10015.IES
IES USA
  • AH10015.IES
LDT File
  • AH10015.LDT
LDT PDF
  • AH10015.PDF
FEATURES
  • Product Code: AH10015
  • Colour: Satin
  • Installation: Wall, Ceiling
  • Material: Steel, prismatic glass
  • Series: Architectural Outdoor
  • Environment: Outdoor
  • Emission: Diffused
  • design by: Ernesto Gismondi
LUMINAIRE *
  • Watt: 13W
  • Voltage: 220V-240V
  • Delivered lumen output: 930lm
  • CCT: 2700K
  • Efficiency: 61%
  • Efficacy: 71.52lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

DIMENSIONS
  • Height: 98 mm
  • Diameter: 312 mm
  • Impact Resistance: IK05
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 12W
  • Socket: E27
Notes

Suitability of the equipment for “cascade”.

Download all Data sheet PDF
