Niki LED Retrofit Gloss
IP
65
Downloadable files
2D Model
Niki_2D.dwg
Niki_2D.dxf
3D Model
Niki_3D.3ds
Niki_3D.stp
Silhouette
Instructions
Y503000448--FOGLIO ISTRUZ. NIKI.pdf
IES Europe
AH10013.IES
IES USA
AH10013.IES
LDT File
AH10013.LDT
LDT PDF
AH10013.PDF
FEATURES
Product Code:
AH10013
Colour:
Gloss
Installation:
WallCeiling
Material:
Steel, prismatic glass
Series:
Architectural Outdoor
Environment:
Outdoor
Emission:
Diffused
design by:
Ernesto Gismondi
LUMINAIRE
Watt:
13W
Voltage:
220V-240V
Delivered lumen output:
930lm
CCT:
2700K
Efficiency:
61%
Efficacy:
71.52lm/W
CRI:
80

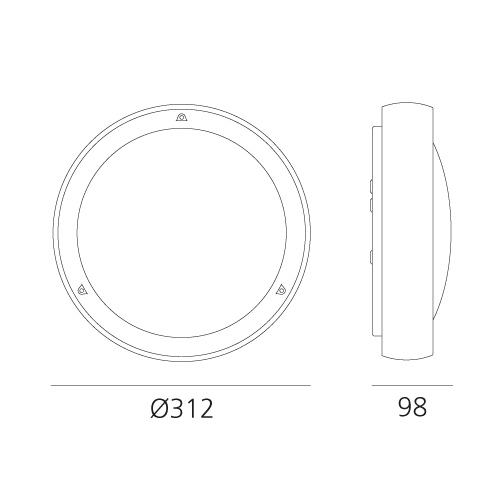

DIMENSIONS
Height:
98 mm
Diameter:
312 mm
Impact Resistance:
IK05
SOURCES NOT INCLUDED
Category:
Led Retrofit
Number:
1
Watt:
15W
Socket:
E27
Notes
Suitability of the equipment for “cascade”.
