Nuda 50 Monolateral Anthracite gray

IP65
2D Model
  • AutoCAD drawing file (.dwg)
  • AutoCAD drawing exchange file (.dxf)
3D Model
  • STEP (.stp; .step)
  • Nuda.3ds
Silhouette
  • Sil_Nuda_Terra50
Instructions
  • y503001875 nuda.pdf
DiaLux ULD File
  • T083600.uld
IES Europe
  • T083600.IES
IES USA
  • T083600.IES
LDT File
  • T083600.LDT
LDT PDF
  • T083600.pdf
LDT Image

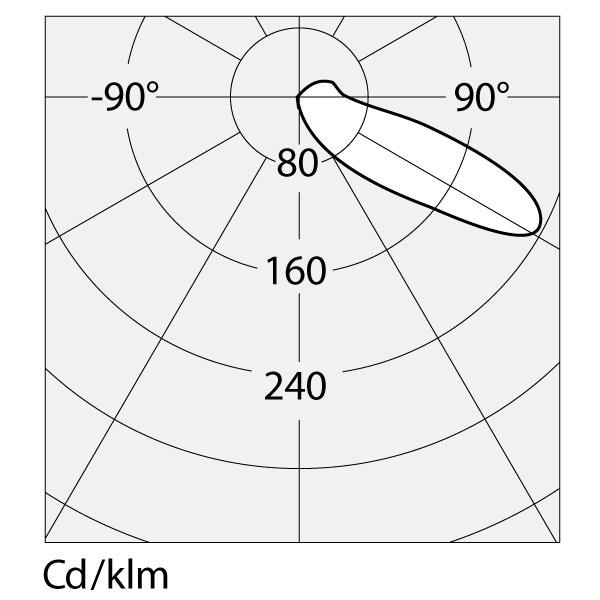

  • Polar curve

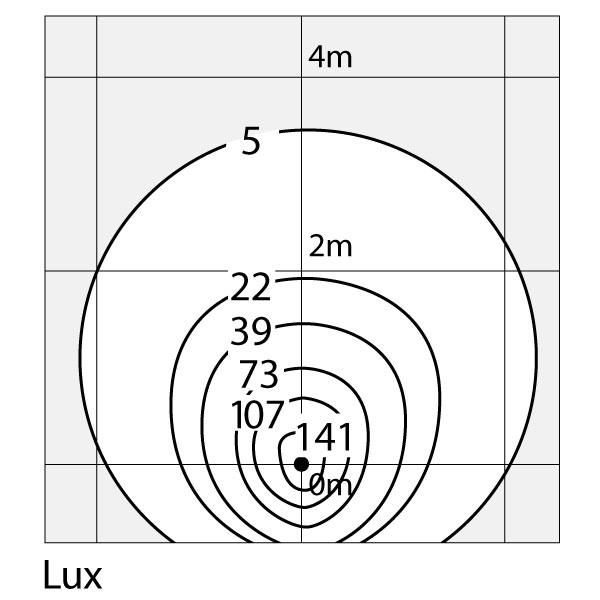

  • Isolux

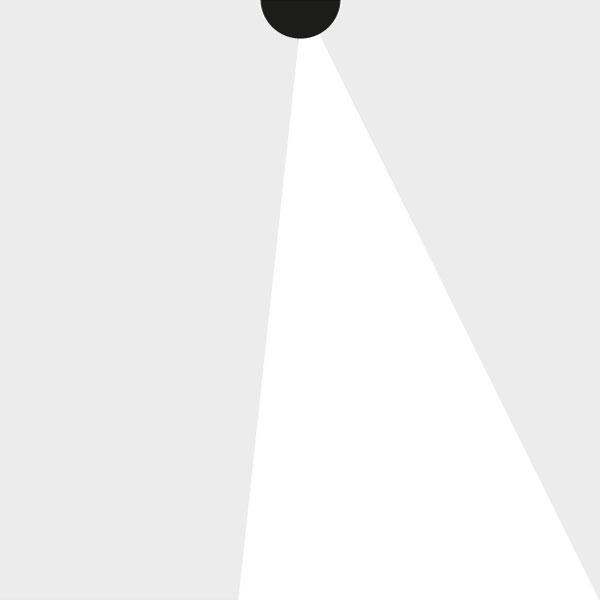

  • Light beam
Other
  • T083600.PDF
FEATURES
  • Article Code: T083620
  • Colour: Anthracite gray
  • Installation: Floor
  • Material: Methacrylate, painted aluminium
  • Series: Architectural Outdoor
  • Environment: Outdoor
  • Emission: Direct
  • design by: Ernesto Gismondi
LUMINAIRE
  • Watt: 8W
  • Voltage: 220V-240 V
  • Delivered lumens output: 180lm
  • CCT: 0K
  • Efficiency: 44%
  • Efficacy: 22.5lm/W
  • CRI: 0

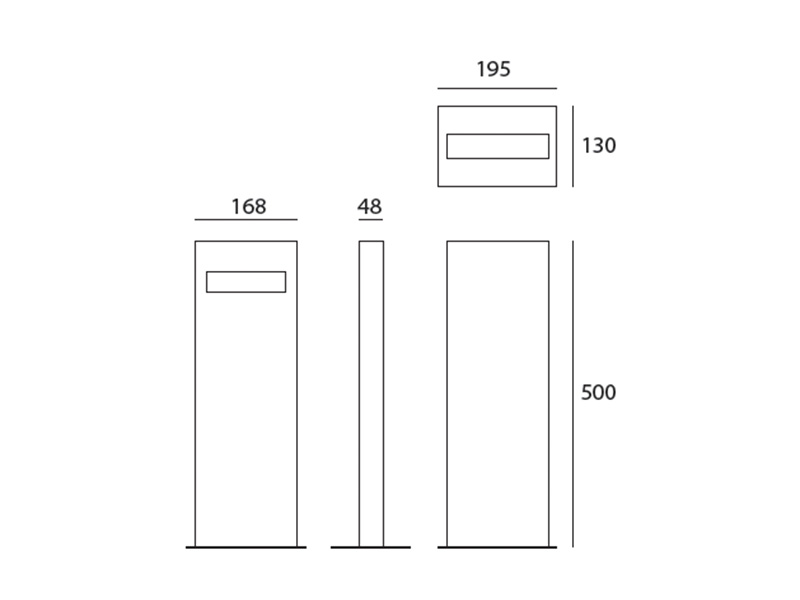

DIMENSIONS
  • Length: cm 16.8
  • Width: cm 4.8
  • Height: cm 50
  • Impact Resistance: IK06
  • Glow Wire Test: 650°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 8W
  • Color temperature (K): 3000K
  • CRI: 80
Notes

Floor fixing with ground mounting plate.
