Febe 3000K - White

IP20 Dimmerable:

Downloadable files

2D Model
  • Febe.dwg
  • Febe.dxf
3D Model
  • Febe.3ds
  • Febe.stp

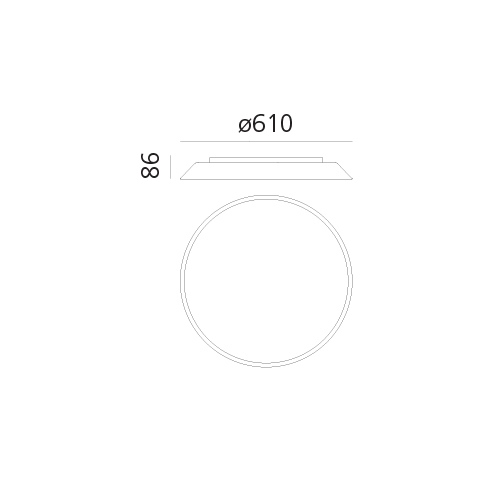

Silhouette
  • Febe_silhouette
Instructions
  • Y513000738B F_IS FEBE.pdf
DiaLux ULD File
  • 0241300A.uld
IES Europe
  • 0241300A.IES
IES USA
  • 0241300A.IES
LDT File
  • 0241300A.LDT
LDT PDF
  • 0241300A.PDF
FEATURES
  • Product Code: 0241300A
  • Colour: White
  • Installation: Wall, Ceiling
  • Material: Methacrylare, polycarbonate
  • Series: Design Collection
  • Environment: Indoor
  • Emission: Direct
  • design by: Ernesto Gismondi
LUMINAIRE
  • Watt: 30W
  • Voltage: 220-240V
  • Delivered lumen output: 2260lm
  • CCT: 3000K
  • Efficiency: 85%
  • Efficacy: 75.33lm/W
  • CRI: 90
  • Dimmable Typology: Push
DIMENSIONS
  • Width: 86 mm
  • Diameter: 610 mm
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led
  • Number: 4
  • Watt: 6.20W
  • Delivered lumen output: 653lm
  • Color temperature (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Efficacy: 105lm/W
  • Service Life: 50000-L70
Download all Data sheet PDF
