nh S1 14

IP20 Dimmerable:
2D Model
  • nh1217 S1 14 Suspension.dwg
  • nh1217 S1 14 Suspension.dxf
3D Model
  • nh1217 S1 14 Suspension.3ds
  • nh1217 S1 14 Suspension.stp
Silhouette
  • nh1217 S1 14_silhouette.jpg
Instructions
  • Y513000952-nh S1-S2.pdf
DiaLux ULD File
  • 1272010A.uld
IES Europe
  • 1272010A.IES
LDT File
  • 1272010A.LDT
LDT PDF
  • 1272010A.PDF
FEATURES
  • Article Code: 1272010A
  • Colour: Black/brass
  • Installation: Suspension
  • Material: Blown glass, brushed brass
  • Series: Design Collection
  • Environment: Indoor
  • design by: Neri&Hu
LUMINAIRE
  • Watt: 4W
  • Voltage: 220-240V
  • Delivered lumens output: 257lm
  • CCT: 3000K
  • Efficiency: 80%
  • Efficacy: 64.31lm/W

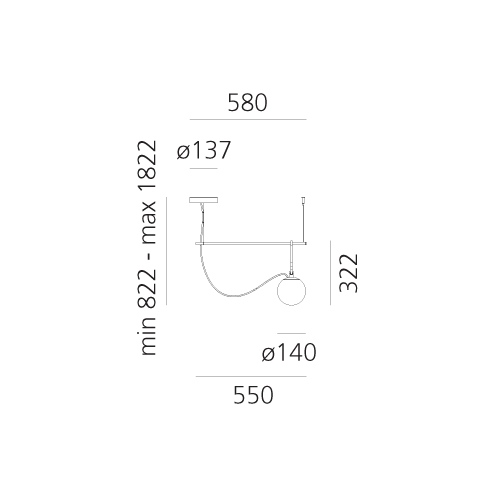

DIMENSIONS
  • Length: cm 55
  • Height: cm 32.2
  • Diameter: cm 14
  • Base Diameter: cm 13.7
  • Max Height from ceiling: cm 182
  • Max Extension Height: cm 182
  • Max Extension Length: cm 58
  • Glow Wire Test: 850°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: 5W
  • Socket: E14
Notes

The glass ball and brass rings can slide along the rod. The light intensity can only be adjusted with dimmable bulbs. Maximum bulb length 80mm. Maximum bulb diameter: 50mm.
