A.24 - Suspension Magnetic Track - Track - 1176mm - Brushed Bronze

IP20
3D Model
  • A.24 MAGNETIC - ALL MODULES - 3DS/STP.zip
Silhouette
  • A.24 - 90 Suspended Magnetic Track.jpg
Instructions
  • A.24 - Magnetic - All Instruction Sheets
FEATURES
  • Article Code: AQ40020
  • Colour: Brushed Bronze
  • Installation: Suspension
  • Series: Architectural Indoor
  • Environment: Indoor
  • design by: Carlotta de Bevilacqua

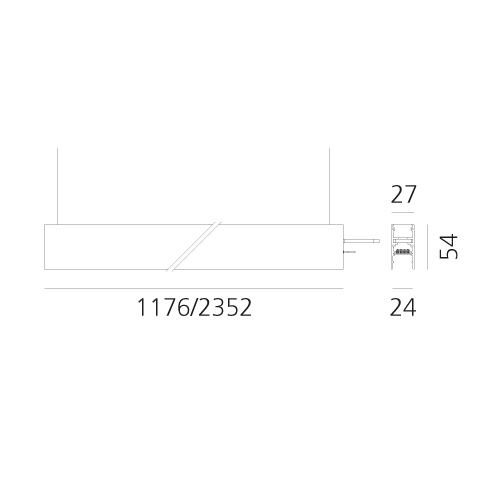

DIMENSIONS
  • Length: cm 117.6
  • Width: cm 2.7
  • Height: cm 5.4
  • Weight: cm 1.7
Notes

Each linear, angle and curved elements are provided with mechanical and electrical joints and installation accessories. End caps have to be ordered separately. 1 suspension cable is also included. Depending on the driver, the product can be undimmable or dimmable DALI.

Accessories
240W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - Black - APP Compatible
AQ16104APP
150W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - White - APP Compatible
AQ17501APP
4pcs feed connectors (for powering multiple sections with a single power kit)
AQ90500
150W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - Black - APP Compatible
AQ17504APP
Power cable, 2x0.75 + 2x0.35, mm2 (to realized customized power cable) - 10m - White
AQ90600
Power cable, 2x0.75 + 2x0.35, mm2 (to realized customized power cable) - 50m - White
AQ90700
Power cable, 2x0.75 + 2x0.35, mm2 (to realized customized power cable) - 10m - Black
AQ90800
240W Recessed power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 396x195x112H - Black - DALI
AQ15404
Power cable, 2x0.75 + 2x0.35, mm2 (to realized customized power cable) - 50m - Black
AQ90900
240W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - White - DALI
AQ16101
240W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - Black - DALI
AQ16104
240W Remote box power supply kit (2 connectors) - 230VAC-48VDC - IP20 - 313x243x57,5H - DALI
AQ16000
240W Remote box power supply kit (2 connectors) - 230VAC-48VDC - IP20 - 313x243x57,5H - APP Compatible
AQ16000APP
240W Recessed power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 396x195x112H - White - APP Compatible
AQ15401APP
240W Recessed power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 396x195x112H - Black - APP Compatible
AQ15404APP
240W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - White - APP Compatible
AQ16101APP
240W Recessed power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 396x195x112H - White - DALI
AQ15401
240W Bare power supply + plug 230VAC-48VDC IP20 - Undimmable (for dimmable version to be combined with “DALI-Selv interface”)
AQ18000
150W Bare power supply + plug 230VAC-48VDC IP20 - Undimmable (for dimmable version to be combined with “DALI-Selv interface”)
AQ18100
A.24 - Suspension - Insulating Spacer - Use between modules powered by different power supplies (1pcs) - Brushed Bronze
AQ49120
240W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - Black - Undimmable
AQ17104
150W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - White - Undimmable
AQ17601
150W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - Black - Undimmable
AQ17604
150W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - White - DALI
AQ17501
150W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - Black - DALI
AQ17504
A.24 - Suspension - End caps. (2pcs) including 1 suspension cable 200H - Brushed Bronze
AQ49020
Auxiliary suspension cable (to be used for S-configuration) (1 pcs)
AQ49500
DALI to DALI-Selv Interface 103x67x21H
AQ18200
A.24 - Suspension - Transition joint - Use between different typology modules (track-diffusing- sharping) - Brushed Bronze
AQ49420
240W Recessed power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 396x195x112H - White - Undimmable
AQ17401
240W Recessed power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 396x195x112H - Black - Undimmable
AQ17404
240W Ceiling power supply kit (cable length 2,2 m) - 230VAC-48VDC - IP20 - 321x91x111H - White - Undimmable
AQ17101
