Led Net - Suspension - App Compatible

IP20
2D Model
  • LedNet_CircleSosp.dwg
  • LedNet_CircleSosp.dxf
3D Model
  • LedNet_CircleSosp.3ds
  • LedNet_CircleSosp.stp

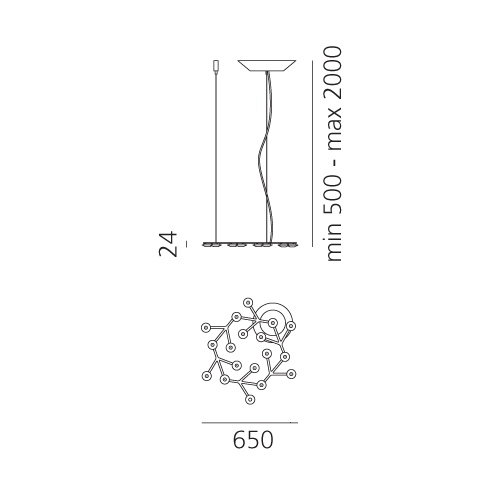

Silhouette
  • LedNet Circolare Sospensione_Silhouette.jpg
Instructions
  • Istruzioni_montaggio
  • Y513001035A-Artemide APP.pdf
DiaLux ULD File
  • 1575050A.uld
IES Europe
  • 1575050APP.IES
IES USA
  • 1575050APP.IES
LDT File
  • 1575050APP.LDT
LDT PDF
  • 1575050APP.PDF
LDT Image
  • Polar curve
  • Cartesian diagram
  • Cone diagram
  • UGR table
Other
  • Polar diagram - Distribution
FEATURES
  • Article Code: 1575050APP
  • Colour: Polished white
  • Installation: Suspension
  • Material: Aluminium, methacrylate
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality
  • Emission: Direct
  • design by: Michele De Lucchi, Alberto Nason
LUMINAIRE
  • Watt: 43W
  • Voltage: 220-240V
  • Delivered lumens output: 2502lm
  • CCT: 3000K
  • Efficiency: 81%
  • Efficacy: 58.19lm/W
  • CRI: 80
DIMENSIONS
  • Height: cm 2.4
  • Diameter: cm 65
  • Max Height from ceiling: cm 200
  • Glow Wire Test: 650°
SOURCES INCLUDED
  • Category: Led
  • Number: 17
  • Watt: 2.17W
  • Delivered lumens output: 153lm
  • Color temperature (K): 3000K
  • CRI: 80
  • Color Tolerance: MacAdam 3SDCM
  • Efficacy: 71lm/W
  • Service Life: 50000-L70
Notes

LEDs included.

Download all Product PDF
