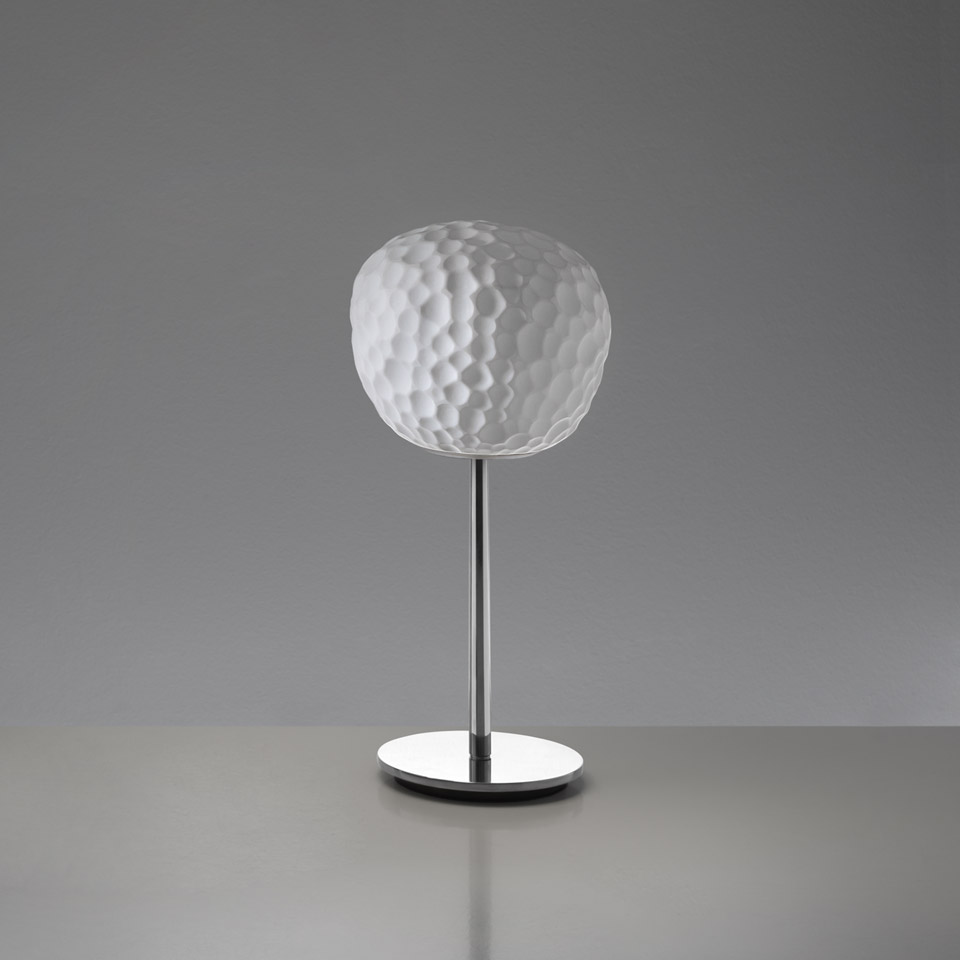

Meteorite 15 Table Stem (E14)

IP20

Downloadable files

2D Model
  • Meteorite Stelo15.dwg
  • Meteorite Stelo15.dxf
3D Model
  • Meteorite Stelo15.3ds
  • Meteorite Stelo15.stp
Silhouette
  • Meteorite 15 Stelo.jpg
Instructions
  • Meteorite_15_Stem_E14_Instruction.pdf
IES Europe
  • 1709110A.IES
IES USA
  • 1709110A.IES
LDT File
  • 1709110A.LDT
LDT PDF
  • 1709110A.PDF
FEATURES
  • Product Code: 1709110A
  • Colour: white
  • Installation: Table
  • Material: Steel base and rod, technopolymer support, blown frosted glass diffuser with acid-etching treatment
  • Series: Design Collection
  • design by: Pio & Tito Toso
LUMINAIRE *
  • Watt: 5W
  • Voltage: 220V - 240V
  • Delivered lumen output: 252lm
  • Efficiency: 54%
  • Efficacy: 50.36lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

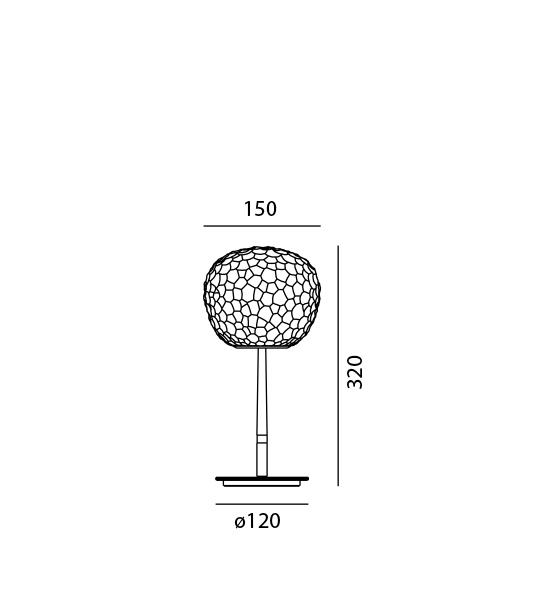

DIMENSIONS
  • Height: 320 mm
  • Diameter: 150 mm
  • Base Diameter: 120 mm
  • Glow Wire Test: N/D°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 6W
  • Socket: E14
Download all Data sheet PDF
