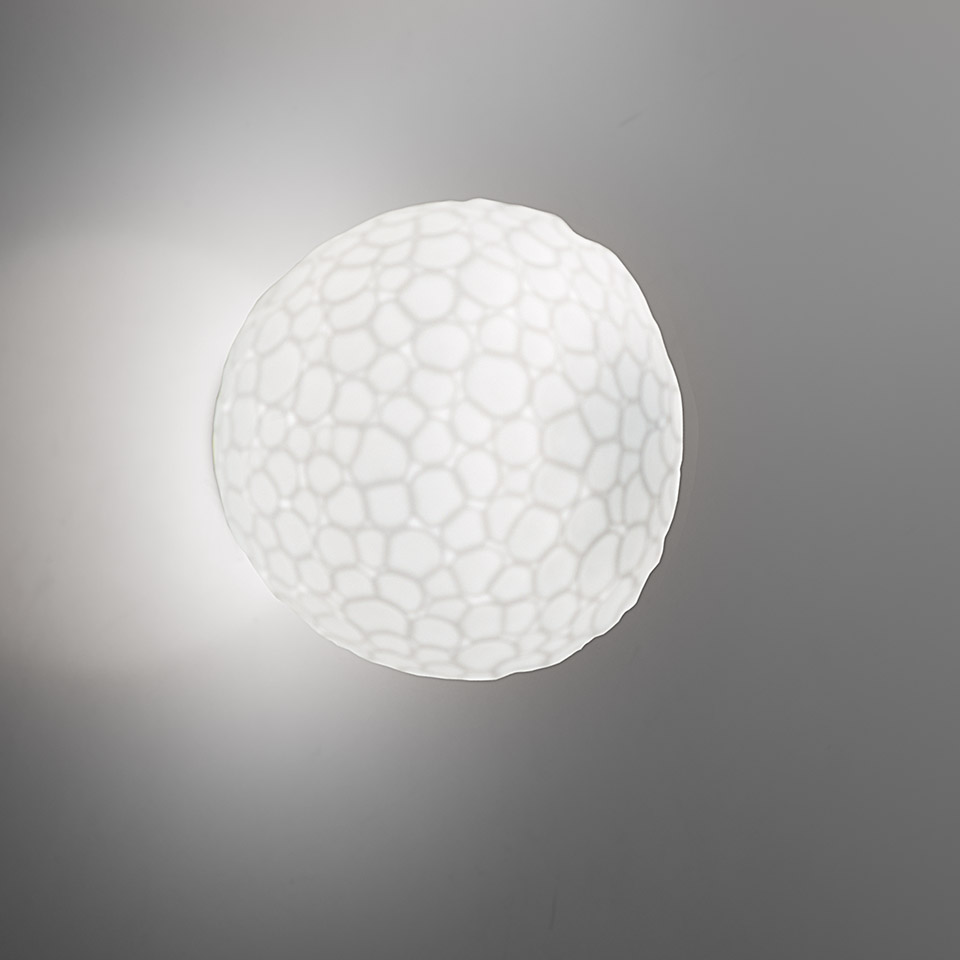

Meteorite 15 Wall/Ceiling (E14)

IP44 Dimmerable:

Downloadable files

3D Model
  • Meteorite 15.stp
  • Meteorite15.3ds
Silhouette
  • Meteorite 15.jpg
IES Europe
  • 1704110A.IES
IES USA
  • 1704110A.IES
LDT File
  • 1704110A.LDT
LDT PDF
  • 1704110A.PDF
FEATURES
  • Product Code: 1704110A
  • Colour: white
  • Installation: Wall, Ceiling
  • Material: Steel and brass frame, blown frosted glass diffuser with acid- etching treatment
  • Series: Design Collection
  • design by: Pio & Tito Toso
LUMINAIRE *
  • Watt: 5W
  • Voltage: 220V - 240V
  • Delivered lumen output: 252lm
  • Efficiency: 54%
  • Efficacy: 50.36lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

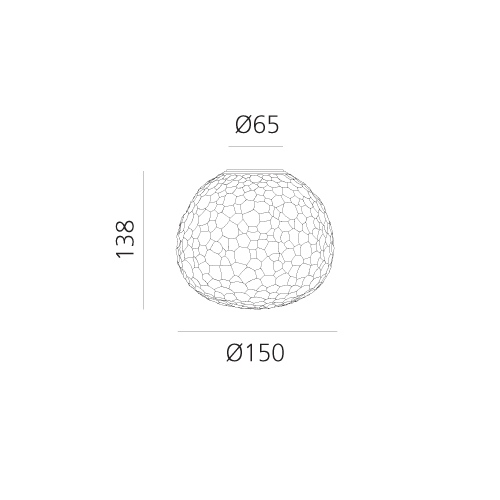

DIMENSIONS
  • Height: 138 mm
  • Diameter: 152 mm
  • Base Diameter: 65 mm
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 6W
  • Socket: E14
Download all Data sheet PDF
