Castore Table 14

IP20

Downloadable files

2D Model
  • Castore14 Tavolo_2D.dwg
  • Castore14 Tavolo_2D.dxf
3D Model
  • Castore14 Tavolo_3D.3ds
  • Castore14 Tavolo_3D.stp
Silhouette
  • Castore14 Tavolo_Silhouette
Instructions
  • Y513000990A Castore 14 Tavolo E14-E12.pdf
IES Europe
  • 1044110A.IES
IES USA
  • 1044110A.IES
LDT File
  • 1044110A.LDT
LDT PDF
  • 1044110A.PDF
FEATURES
  • Product Code: 1044110A
  • Colour: White
  • Installation: Table
  • Material: Zamak, polycarbonate, blown glass
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality, Retail, Residential
  • Emission: Diffused
  • design by: Michele De Lucchi, Huub Ubbens
LUMINAIRE *
  • Watt: 5W
  • Voltage: 220V-240V
  • Delivered lumen output: 402lm
  • Efficiency: 86%
  • Efficacy: 80.46lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

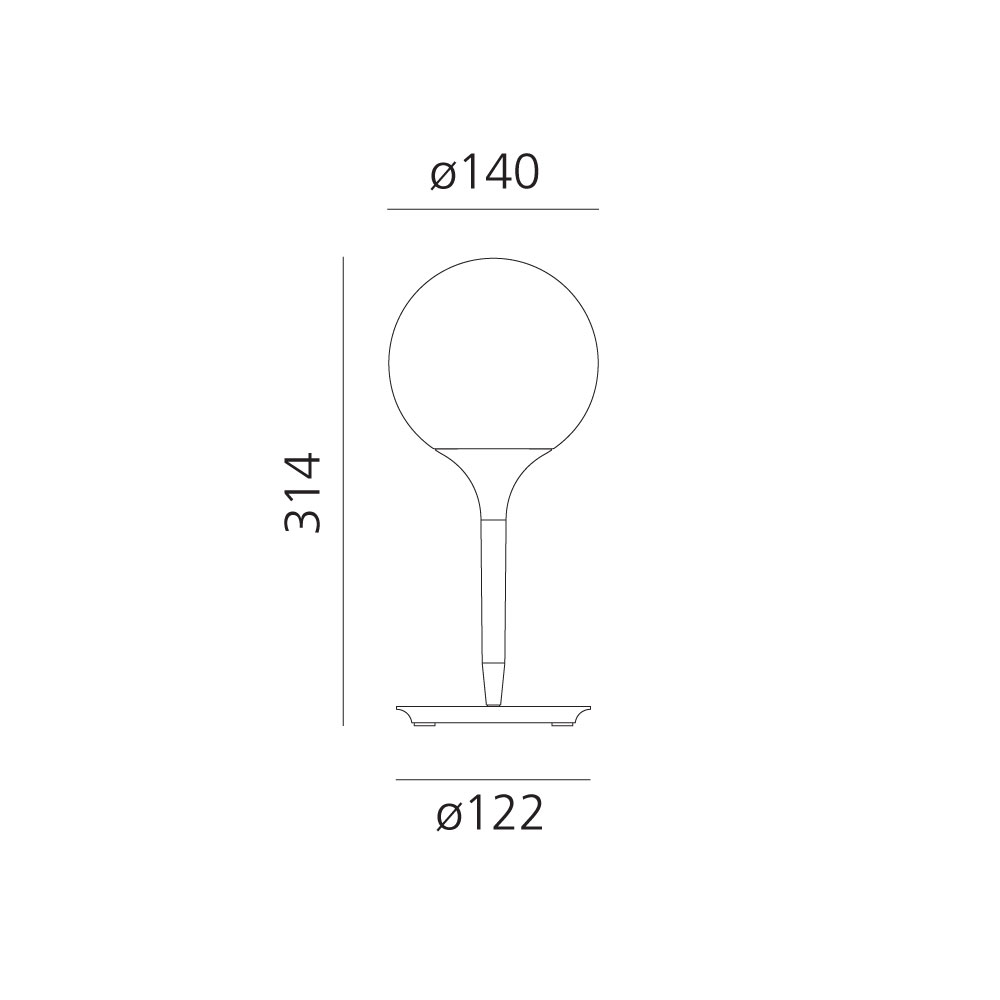

DIMENSIONS
  • Height: 314 mm
  • Diameter: 140 mm
  • Base Diameter: 122 mm
  • Glow Wire Test: 850°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 6W
  • Socket: E14
AWARDS

2004 Design Plus, light + building Frankfurt am Main (Deutschland) 2004 Reddot Design Award Essen (Deutschland) 2004 Compasso d’oro / A.D.I. Segnalazione – Milano (Italia)

Download all Data sheet PDF
