Look at Me Cluster 35 - Nero

IP20 Dimmerable:

Downloadable files

2D Model
  • Look-at-me-cluster-35.dwg
  • Look-at-me-cluster-35.dxf
3D Model
  • Look-at-me-cluster-35.3ds
  • Look-at-me-cluster-35.stp
Silhouette
  • Look-At-Me-Cluster-35.jpg
3D BIM Revit
  • Artemide Look at Me EN.zip
  • Artemide Look at Me EN_Low Version.zip
IES Europe
  • 1453010APP.IES
IES USA
  • 1453010APP.IES
LDT File
  • 1453010APP.LDT
LDT PDF
  • 1453010APP.PDF
FEATURES
  • Product Code: 1453010APP
  • Colour: Black
  • Installation: Suspension
  • Series: Design Collection
  • Environment: Indoor
  • design by: Alida Catella, Silvio De Ponte
LUMINAIRE
  • Watt: 50W
  • Delivered lumen output: 1905lm
  • CCT: 3000K
  • Efficiency: 40%
  • Efficacy: 38.11lm/W
  • CRI: 90
  • Dimmable Typology: Push & APP

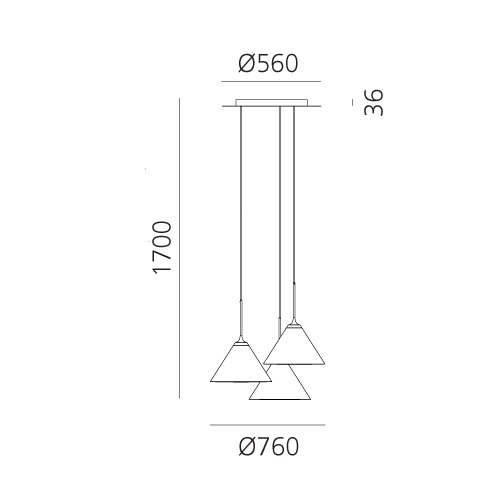

DIMENSIONS
  • Length: 760 mm
  • Width: 760 mm
  • Base Diameter: 560 mm
  • Max Height from ceiling: 1700 mm
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 50W
  • Delivered lumen output: 4500lm
  • Color temperature (K): 3000K
  • CRI: 90
Accessories
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Download all Data sheet PDF
