Ripple - Ring Ø500

IP20 Dimmerable:
3D Model
  • Ripple 500.3ds
  • Ripple 500.stp
Silhouette
  • Ripple-500.jpg
Instructions
  • Y513001304A_Ripple_50-70-90.PDF
  • Y513001532A FOGLIO ISTRUZ RIPPLE ACCESSORY.pdf
3D BIM Revit
  • Artemide Ripple EN.zip
IES Europe
  • 2060010A.IES
  • 2060010A_450mA EU.IES
IES USA
  • 2060010A.IES
  • 2060010A_450mA EU.IES
LDT File
  • 2060010A.LDT
  • 2060010A_450mA EU.LDT
LDT PDF
  • 2060010A_450MA EU.PDF
  • 2060010A.PDF
FEATURES
  • Article Code: 2060010A
  • Colour: White
  • Installation: Suspension
  • Material: Heat-conducting moulded plastic
  • Series: Design Collection
  • Environment: Indoor
  • design by: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 50W
  • Delivered lumens output: 3089lm
  • CCT: 3000K
  • Efficiency: 49%
  • Efficacy: 61.78lm/W
  • CRI: 90

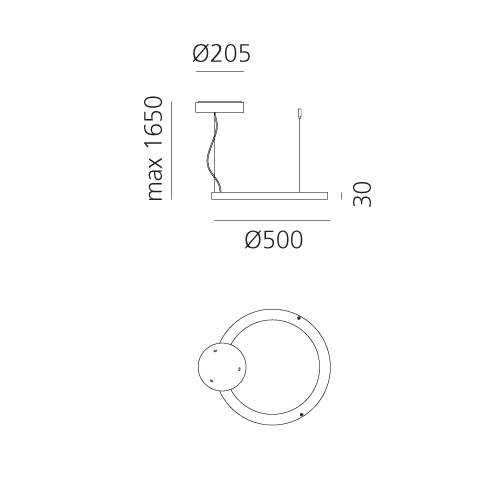

DIMENSIONS
  • Height: cm 3
  • Diameter: cm 50
  • Base Diameter: cm 20.5
  • Max Height from ceiling: cm 165
Notes

To obtain the same luminous flux in case of compositions with several Ripple of different sizes side by side, set the drivers as follows:

Ripple 500 - 20W
Ripple 700 - 29W
Ripple 900 - 38W

Accessories
Acoustic Diffuser Ø500mm - h200mm
2072120A
Acoustic Diffuser Ø500mm - h600mm
2072220A
Acoustic Diffuser Ø500mm - h400mm
2072020A
