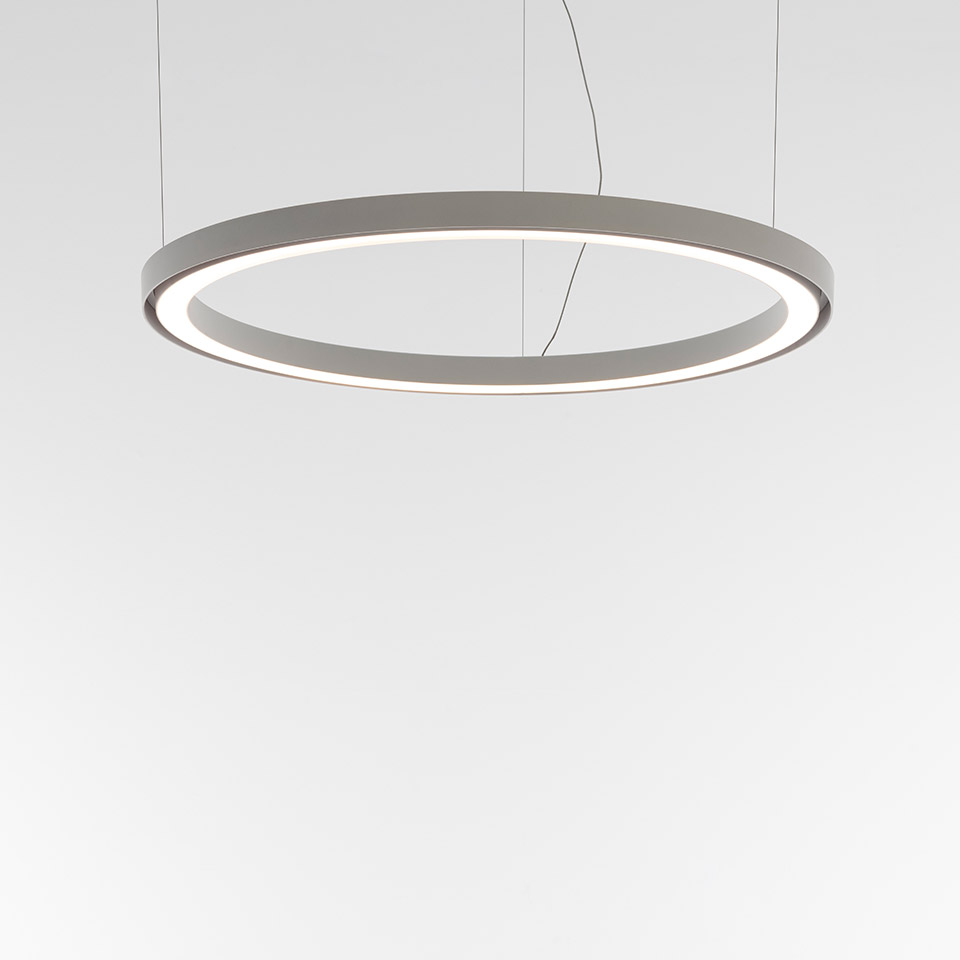

Ripple - Ring Ø900 - APP Compatible

IP20 Dimmerable:
3D Model
  • Ripple 900.3ds
  • Ripple 900.stp
Silhouette
  • Ripple-900.jpg
Instructions
  • Y513001304A_Ripple_50-70-90.PDF
  • Y513001532A FOGLIO ISTRUZ RIPPLE ACCESSORY.pdf
3D BIM Revit
  • Artemide Ripple EN.zip
  • Artemide Ripple EN_Low Version.zip
IES Europe
  • 2062010APP_850mA EU.IES
  • 2062010APP.IES
IES USA
  • 2062010APP_850mA EU.IES
  • 2062010APP.IES
LDT File
  • 2062010APP_850mA EU.LDT
  • 2062010APP.LDT
LDT PDF
  • 2062010APP.PDF
  • 2062010APP_850MA EU.PDF
FEATURES
  • Article Code: 2062010APP
  • Colour: White
  • Installation: Suspension
  • Material: Heat-conducting moulded plastic
  • Series: Design Collection
  • Environment: Indoor
  • design by: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 50W
  • Delivered lumens output: 3378lm
  • CCT: 3000K
  • Efficiency: 51%
  • Efficacy: 67.57lm/W
  • CRI: 90

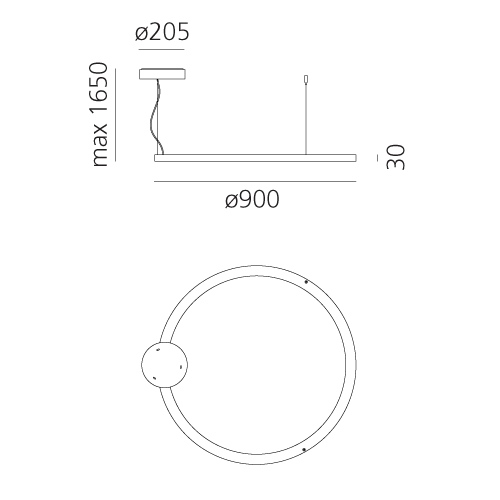

DIMENSIONS
  • Height: cm 3
  • Diameter: cm 90
  • Base Diameter: cm 20.5
  • Max Height from ceiling: cm 165
Notes

To obtain the same luminous flux in case of compositions with several Ripple of different sizes side by side, set the drivers as follows:

Ripple 500 - 20W
Ripple 700 - 29W
Ripple 900 - 38W

Accessories
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Acoustic Diffuser Ø900mm - h400mm
2074020A
Acoustic Diffuser Ø900mm - h200mm
2074120A
Acoustic Diffuser Ø900mm - h600mm
2074220A
