Mimesi White Integralis - App Compatible

IP20 Dimmerable:

Downloadable files

2D Model
  • Mimesi.dwg
  • Mimesi.dxf
3D Model
  • Mimesi.3ds
  • Mimesi.stp
Silhouette
  • Mimesi.jpg
Instructions
  • Y513001379B-Mimesi White Integrlis.pdf
IES Europe
  • 1835010IN0APP.IES
IES USA
  • 1835010IN0APP.IES
LDT File
  • 1835010IN0APP.LDT
LDT PDF
  • 1835010IN0APP.PDF
FEATURES
  • Product Code: 1835010IN0APP
  • Colour: Mirror
  • Installation: Floor
  • Material: Steel base, aluminum and engraved transparent technopolymer frame, aluminum reflector
  • Series: Design Collection
  • Environment: Indoor
  • Emission: Indiretta, diffusa
  • design by: Carlotta de Bevilacqua
LUMINAIRE
DAY MODE
  • Watt: 42W
  • Voltage: 220/240V
  • Delivered lumen output: 3887lm
  • Radiant Flux: 2629mW
  • CCT: 5000K
  • Efficiency: 82%
  • Efficacy: 92.55lm/W
  • CRI: 90
  • Dimmable Typology: APP

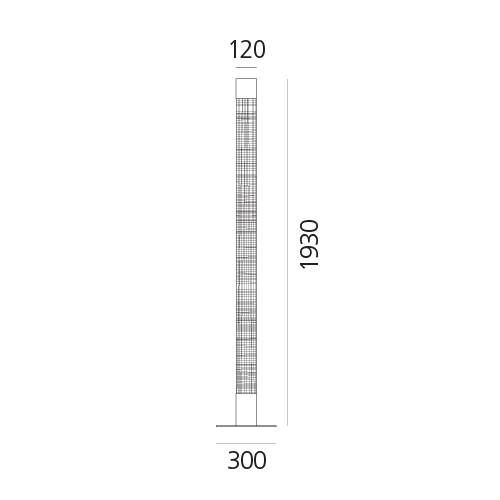

DIMENSIONS
  • Length: 120 mm
  • Width: 120 mm
  • Height: 1930 mm
  • Base Length: 300 mm
  • Base Width: 300 mm
  • Impact Resistance: N/D
  • Glow Wire Test: 650°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Color temperature (K): 5000K
  • CRI: 90
  • Color Tolerance: 3SDCM
  • Service Life: L80 (10K) 55000h
Accessories
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
