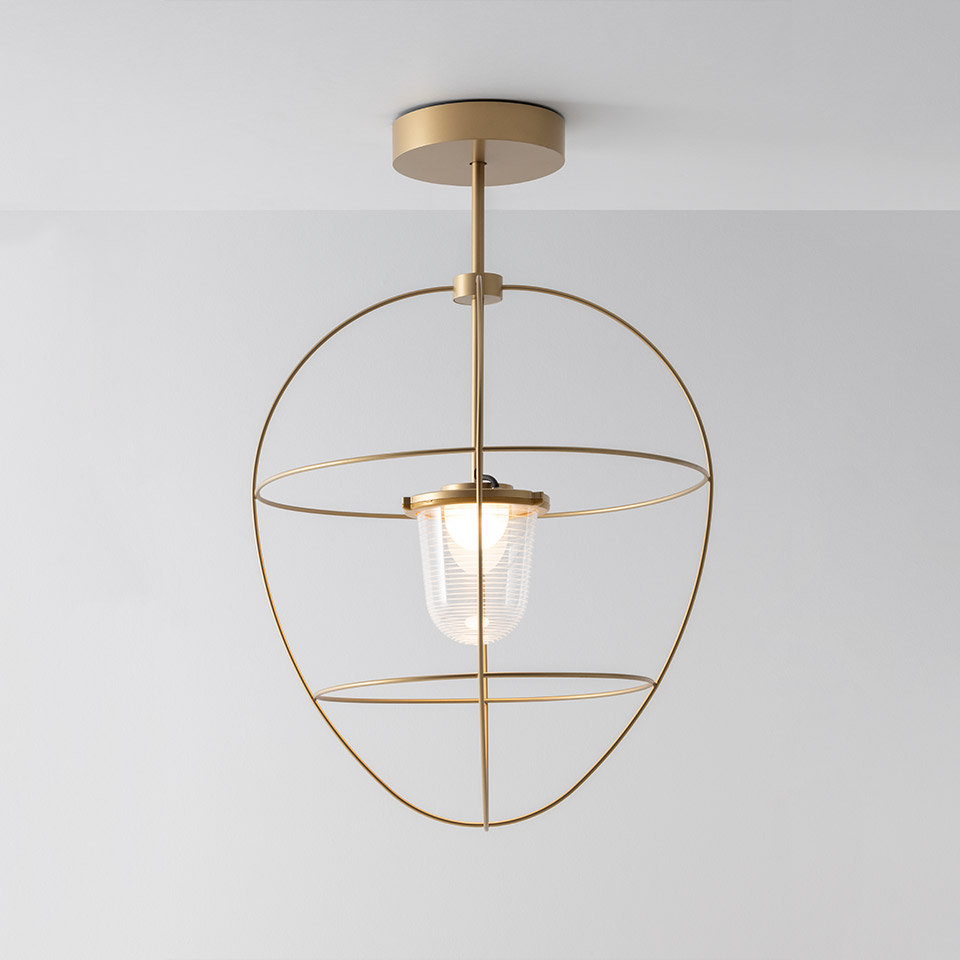

Nottola

IP65

Downloadable files

Silhouette
  • Nottola.jpg
Instructions
  • Y513001445A-Nottola.pdf
IES Europe
  • T070010.IES
IES USA
  • T070010.IES
LDT File
  • T070010.LDT
LDT PDF
  • T070010.PDF
FEATURES
  • Product Code: T070010
  • Colour: Brass
  • Installation: Suspension
  • Series: Architectural Outdoor
  • design by: Alexander Bellman
LUMINAIRE
  • Watt: 20W
  • Delivered lumen output: 2034lm
  • CCT: 3000K
  • Efficiency: 88%
  • Efficacy: 101.69lm/W
  • CRI: 90

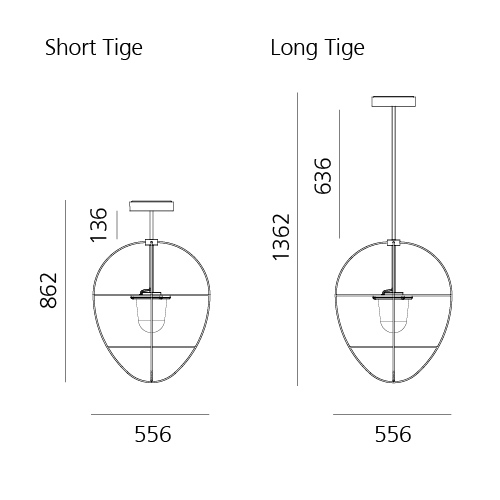

DIMENSIONS
  • Length: 556 mm
  • Width: 556 mm
  • Height: 862 mm
Notes

The product comes with two interchangeable tige, allowing for two different installation lengths.

Download all Data sheet PDF
