nh 22 Ceiling

IP20 Dimmerable:

Downloadable files

2D Model
  • nh 22 Ceiling.dxf
3D Model
  • nh 22 Ceiling.3ds
  • nh 22 Ceiling.stp

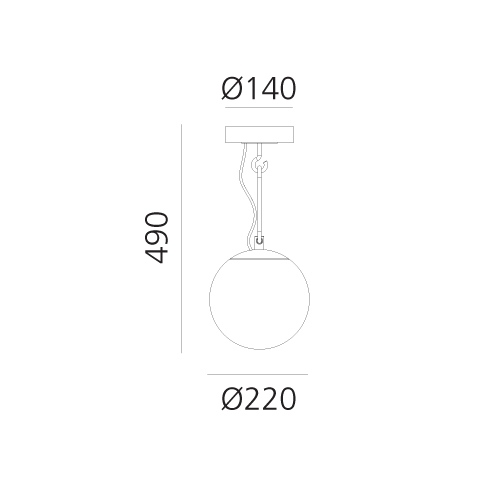

Silhouette
  • nh-22-ceiling-sil.jpg
Instructions
  • Y513001521-nh Ceiling.pdf
IES Europe
  • 1285010A.IES
IES USA
  • 1285010A.IES
LDT File
  • 1285010A.LDT
LDT PDF
  • 1285010A.PDF
FEATURES
  • Product Code: 1285010A
  • Colour: Black/brass
  • Installation: Ceiling
  • Material: Blown glass, brushed brass
  • Series: Design Collection
  • Environment: Indoor
  • design by: Neri&Hu
LUMINAIRE *
  • Watt: 13W
  • Voltage: 220-240V
  • Delivered lumen output: 1142lm
  • Efficiency: 75%
  • Efficacy: 87.83lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

DIMENSIONS
  • Height: 490 mm
  • Diameter: 220 mm
  • Base Diameter: 140 mm
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 15W
  • Socket: E27
Download all Data sheet PDF
