La linea 25 - 10mt

IP65 Dimmerable:

Downloadable files

Silhouette
  • La Linea 25.jpg
Instructions
  • Y513001710B F_IS LA LINEA 25.pdf
IES Europe
  • T4621010.IES
  • T4621010_1000mm.IES
  • T4621010_500mm.IES
IES USA
  • T4621010.IES
  • T4621010_1000mm.IES
  • T4621010_500mm.IES
LDT File
  • T4621010.LDT
  • T4621010_1000mm.LDT
  • T4621010_500mm.LDT
LDT PDF
  • T4621010.PDF
  • T4621010_1000MM.PDF
  • T4621010_500MM.PDF
FEATURES
  • Product Code: T4621010
  • Colour: White
  • Installation: Ceiling, Wall
  • Material: High diffusion optical silicone lamp body. Transparent technopolymer wall mounts.
  • Series: Design Collection, Architectural Outdoor
  • design by: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 12,5W/m
  • Delivered lumen output: 950 lm/m
  • CCT: 3000K
  • CRI: 90
  • Dimmable Typology: APP,Push,Dali

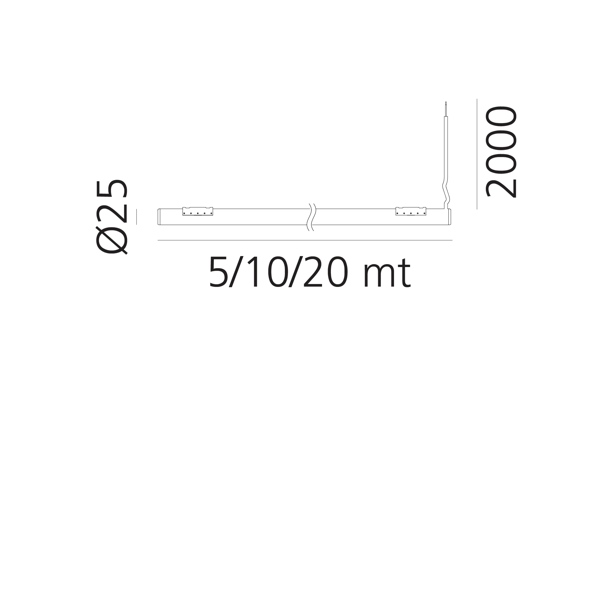

DIMENSIONS
  • Length: 10000 mm
  • Diameter: 25 mm
Notes

Weight 0,7 kg/m

Accessories
Remote Driver - 200W - 100-305Vac - 250x68x40 (LxWxH) - 0-10/On-Off - IP65
DV1105
Remote Driver - 200W - 100-240Vac - 240x68x40 (LxWxH) - Push & APP - IP65
DV1105APP
Remote Driver - 200W - 100-305Vac - 255x68x40 (LxWxH) - DALI - IP65
DV1106
Ceiling Power Kit - 200W - 90-305Vac - 400x110x52 (LxWxH) - 0-10/On-Off - IP20
T4691010
Ceiling Power Kit - 200W - 90-305Vac - 400x110x52 (LxWxH) - Push & APP - IP20
T4691010APP
Ceiling Power Kit - 200W - 90-305Vac - 400x110x52 (LxWxH) - DALI - IP20
T4691110
Download all Data sheet PDF
