ALE.01 - 3000K - Brown

IP20 Dimmerable:

Downloadable files

2D Model
  • ALE.01 SUSPENSION.dwg
  • ALE.01 SUSPENSION.dxf
3D Model
  • ALE.01 SUSPENSION.3ds
  • ALE.01 SUSPENSION.stp
Silhouette
  • ALE01.jpg
Instructions
  • Y513001941 F_IS ALE01.pdf
IES Europe
  • 1075010A_INDIRETTA.IES
  • 1075010A_DIRETTA_2.IES
  • 1075010A_DIRETTA_1.IES
IES USA
  • 1075010A_INDIRETTA.IES
  • 1075010A_DIRETTA_2.IES
  • 1075010A_DIRETTA_1.IES
LDT File
  • 1075010A_DIRETTA_2.LDT
  • 1075010A_DIRETTA_1.LDT
  • 1075010A_INDIRETTA.LDT
LDT PDF
  • 1075010A_INDIRETTA.PDF
  • 1075010A_DIRETTA_2.PDF
  • 1075010A_DIRETTA_1.PDF
FEATURES
  • Product Code: 1075010A
  • Colour: Brown
  • Installation: Suspension
  • Series: Design Collection, Architectural Indoor
  • Environment: Indoor
  • design by: Hassell
LUMINAIRE
  • Watt: 60W
  • Delivered lumen output: 7643lm
  • CCT: 3000K
  • Efficiency: 86.23%
  • Efficacy: 127lm/W
  • CRI: 90
  • Dimmable Typology: Dali

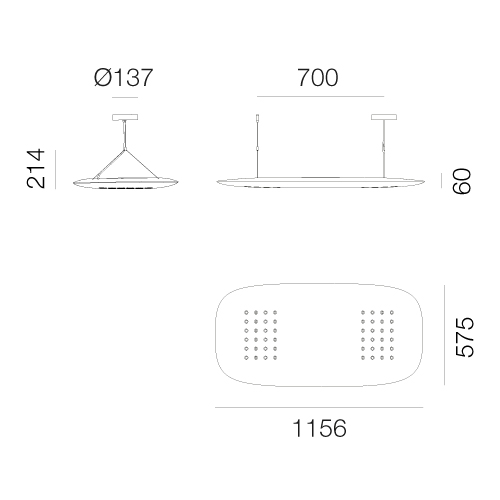

DIMENSIONS
  • Length: 1150 mm
  • Width: 570 mm
  • Height: 56 mm
Notes

The correct installation height is recommended at 1350 mm from the work surface.

We provide three separate photometric files: one for the indirect emission and two for the right and left optics. For precise lighting specifications, please refer to the brochure.
