La linea - 5mt - Recessed Trim

IP65 Dimmerable:

Downloadable files

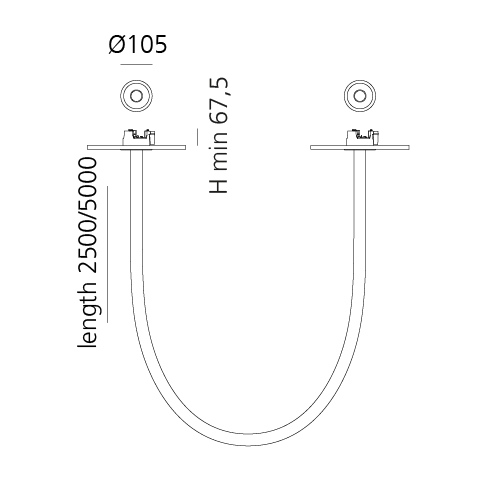

Silhouette
  • La Linea Trim.jpg
Instructions
  • Y513001640A FOGLIO ISTRUZ LA LINEA RECESSED KIT.pdf
  • Y513001747A F_IS LA LINEA RECESSED.pdf
IES Europe
  • T4600410.IES
  • T4600410_1000mm.IES
  • T4600410_500mm.IES
IES USA
  • T4600410.IES
  • T4600410_1000mm.IES
  • T4600410_500mm.IES
LDT File
  • T4600410.LDT
  • T4600410_1000mm.LDT
  • T4600410_500mm.LDT
LDT PDF
  • T4600410.PDF
  • T4600410_1000MM.PDF
  • T4600410_500MM.PDF
FEATURES
  • Product Code: T4600410
  • Colour: White
  • Installation: Ceiling, Wall
  • Material: High diffusion optical silicone lamp body. Transparent technopolymer wall mounts. Steel recessed ceiling mounts, steel and aluminum surface-mounted ceiling mounts.
  • Series: Design Collection, Architectural Outdoor
  • design by: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 15W/m
  • Delivered lumen output: 960 lm/m
  • CCT: 3000K
  • Efficiency: 100%
  • Efficacy: 64lm/W
  • CRI: 95
  • Dimmable Typology: APP,Push,Dali
DIMENSIONS
  • Length: 5000 mm
  • Diameter: 40 mm
AWARDS

Winner of the Archiproducts Design Awards 2019 - Lighting Category
Winner of Wallpapers Design Awards 2020
Winner of Bo Bedre Design Awards 2020 - Lighting Category
Winner of NYCxDESIGN Awards 2021
Compasso d'Oro Award, Honourable Mention

Notes

10 wall/ceiling supports included

Weight 1,4 kg/m

Driver not included

Accessories
Additional wall/ceiling mount for outdoor use (5 pcs)
R304975
Driver 120W - CV 220-240V - 24VDC - SELV - On-Off - 300x40x30 (LxWxH) - IP20
DV1033
Driver - 90W - CV 110-240VAC - 24VDC - 0-10V - 250x63x30mm (LxWxH) - IP65 – IP connectors included
DV1075
Driver 90W - CV 110-240VAC - 24VDC - Push & APP - 250x100x52mm (LxWxH) - IP20
DV1075APP
Driver - 90W - CV 110-240VAC - 24VDC - DALI - 250x63x30mm (LxWxH) - IP65 – IP connectors included
DV1076
Download all Data sheet PDF
