Stellar Nebula - 16

IP20 Dimmerable:

Downloadable files

2D Model
  • Stellar Nebula 16.dwg
  • Stellar Nebula 16.dxf
3D Model
  • Stellar Nebula 16.3ds
  • Stellar Nebula 16.stp
Silhouette
  • Stellar Nebula 16.jpg
Instructions
  • Y513001972B F_IS STELLAR NEBULA 16 SUSPENSION.pdf
IES Europe
  • 0152000A.IES
IES USA
  • 0152000A.IES
LDT File
  • 0152000A.LDT
LDT PDF
  • 0152000A.PDF
FEATURES
  • Product Code: 0152000A
  • Colour: Iridescent
  • Installation: Suspension
  • Material: Ceiling mount in galvanized steel sheet, mirror-polished aluminum cover rose, steel suspension cable. Lamp body in die-cast aluminum alloy, aesthetic cover in mirror-polished aluminum. Mouth-blown glass diffuser with PVD dichroic treatment, internal support for fixing the diffuser in injection-molded fiberglass-reinforced technopolymer.
  • Series: Design Collection
  • design by: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 9W
  • Delivered lumen output: 594lm
  • CCT: 3000K
  • Efficiency: 68%
  • Efficacy: 66.00lm/W
  • CRI: 90
  • Dimmable Typology: Push

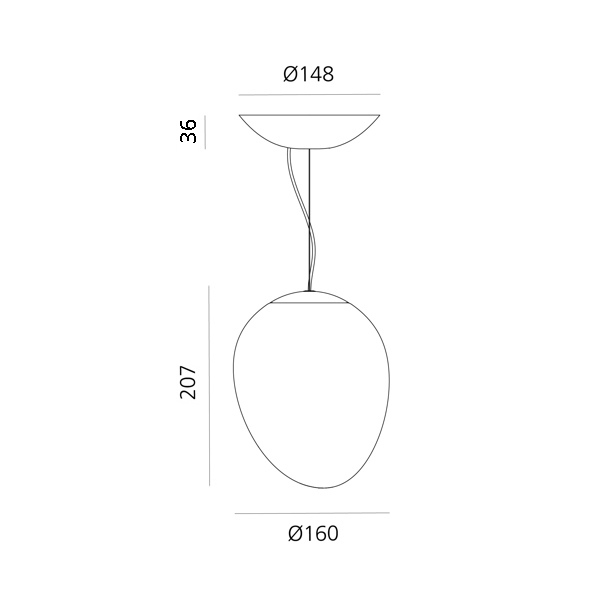

DIMENSIONS
  • Diameter: 160 mm
  • Base Diameter: 148 mm
Download all Data sheet PDF
