Somnĭum System - Linear Module - 1260mm - 3000K

IP20 Dimmerable:

Downloadable files

2D Model
  • Somnium System All Modules.zip
3D Model
  • Somnium All Modules + Configuration Example.zip
Silhouette
  • Somnium-System-linear-1260.jpg
Instructions
  • Y513002068A F_IS SOMNIUM SUSPENSION SYSTEM.pdf
IES Europe
  • TT21000.IES
IES USA
  • TT21000.IES
LDT File
  • TT21000.LDT
LDT PDF
  • TT21000.PDF
FEATURES
  • Product Code: TT21000
  • Colour: Brushed Aluminum
  • Installation: Suspension
  • Material: Aluminum lamp body, technopolymer diffuser
  • Series: Architectural Indoor
  • design by: Carlotta de Bevilacqua
LUMINAIRE
  • Watt: 16W
  • Delivered lumen output: 2488lm
  • CCT: 3000K
  • Efficiency: 93%
  • Efficacy: 155.50lm/W
  • CRI: 90
  • Dimmable Typology: Push & APP,Push/DALI

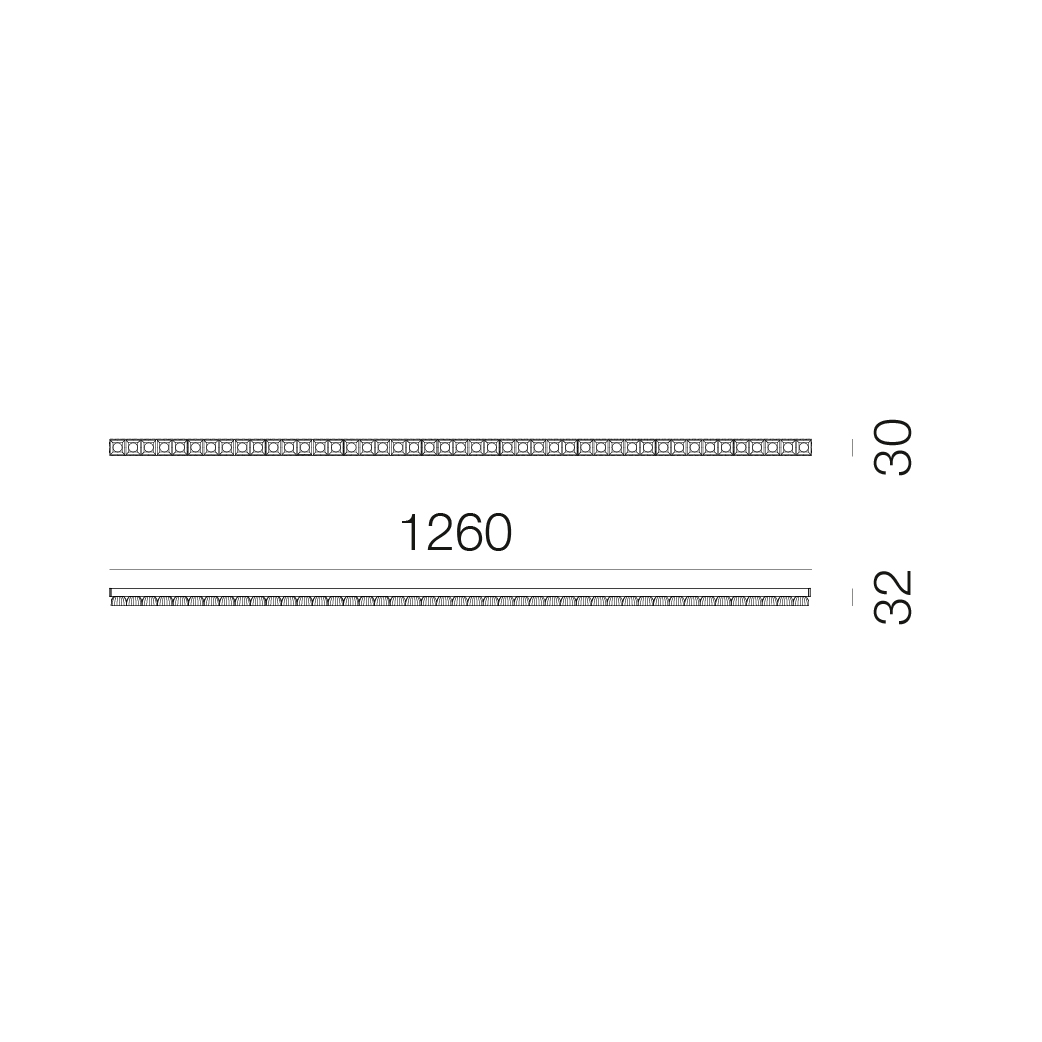

DIMENSIONS
  • Length: 1260 mm
  • Width: 30 mm
  • Height: 32 mm
  • Glow Wire Test: 650°
Accessories
End Caps Kit: 2 end caps with suspension/ceiling mounting cables
TT50300
Mechanical Joint Kit: 1 mechanical joint with suspension/ceiling mounting cable, for module connection
TT50400
Ceiling power supply kit - 200W (Output max 175W) - 220-240Vac - 48Vdc - 0-10 - IP20 - 400x110x52H - Cable Lenght 2m
TT50100
Ceiling power supply kit - 200W (Output max 175W) - 220-240Vac - 48Vdc - DALI 2/Push - IP20 - 400x110x52H - Cable Lenght 2m
TT50200
Ceiling power supply kit - 200W (Output max 175W) - 220-240Vac - 48Vdc - APP & Push - IP20 - 400x110x52H - Cable Lenght 2m
TT50200APP
Recessed power supply kit - 200W (Output max 175W) - 220-240Vac - 48Vdc - 0-10 - IP20 - 396x195x112H - Cable Lenght 2m
TT51100
Recessed power supply kit - 200W (Output max 175W) - 220-240Vac - 48Vdc - DALI 2/Push - IP20 - 396x195x112H - Cable Lenght 2m
TT51200
Recessed power supply kit - 200W (Output max 175W) - 220-240Vac - 48Vdc - APP & Push - IP20 - 396x195x112H - Cable Lenght 2m
TT51200APP
Download all Data sheet PDF
