Tizio 35
IP
20
Downloadable files
2D Model
Tizio_35_dwg
Silhouette
Instructions
Y513001908 FOGLIO ISTRUZ TIZIO 35W - TIZIO35 20W.pdf
IES Europe
A005010.IES
IES USA
A005010.IES
LDT File
A005010.LDT
LDT PDF
A005010.PDF
FEATURES
Product Code:
A005010
Colour:
Black
Installation:
Table
Material:
aluminium, technopolymer
Series:
Design Collection
Environment:
Indoor
Area contract:
Hospitality,
Office,
Residential
Emission:
Direct Adjustable
design by:
Richard Sapper
LUMINAIRE
Trasformer availability:
Integrated
Watt:
3,3W
Voltage:
220V-240V
Delivered lumen output:
191lm
Efficiency:
48%
Efficacy:
63.67lm/W
CRI:
80

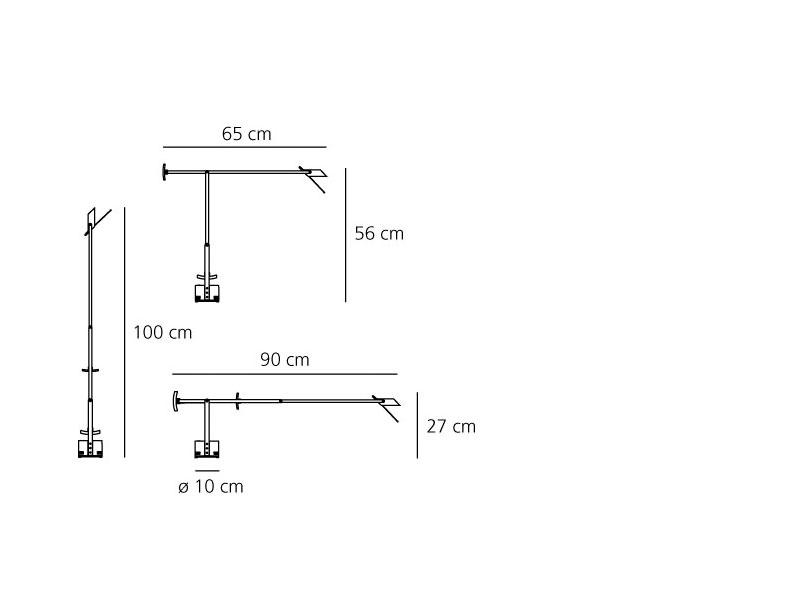

DIMENSIONS
Length:
650 mm
Height:
560 mm
Base Diameter:
100 mm
Max Extension Height:
1000 mm
Max Extension Length:
900 mm
Impact Resistance:
N/D
Glow Wire Test:
N/D°
SOURCES NOT INCLUDED
Category:
Led Retrofit
Number:
1
Watt:
2,5W
Socket:
GY6.35
Notes
Button with two illumination intensities
Accessories
TIZIO 35 SUPPORTO TERRA
A088000
