Ciclope Floor 90 Bilaterale Gray/white

IP65

Downloadable files

2D Model
  • Ciclope terra 90_Bifacciale.dwg
  • Ciclope terra 90_Bifacciale.dxf
3D Model
  • Ciclope terra 90_Bifacciale.3ds
  • Ciclope terra 90_Bifacciale.stp
Silhouette
  • Ciclope-90-bilateral.jpg
Instructions
  • Istruzioni_montaggio_terra bifacciale
DiaLux ULD File
  • T081400.uld
IES Europe
  • T081400.IES
IES USA
  • T081400.IES
LDT File
  • T081400.LDT
LDT PDF
  • T081400.pdf
Other
  • T081400.PDF
FEATURES
  • Product Code: T081400
  • Colour: Gray/white
  • Installation: Bollard, Floor
  • Material: Composite technopolymer, polycarbonate, steel, aluminum
  • Series: Architectural Outdoor
  • Environment: Outdoor
  • Area contract: null, Outdoor, Residential
  • Emission: Direct
  • design by: Alessandro Pedretti
LUMINAIRE
  • Power Supply: Electronic
  • Watt: 13W
  • Voltage: 220-240V
  • Delivered lumen output: 765lm
  • CCT: 3000K
  • Efficiency: 64%
  • Efficacy: 58.88lm/W
  • CRI: 90

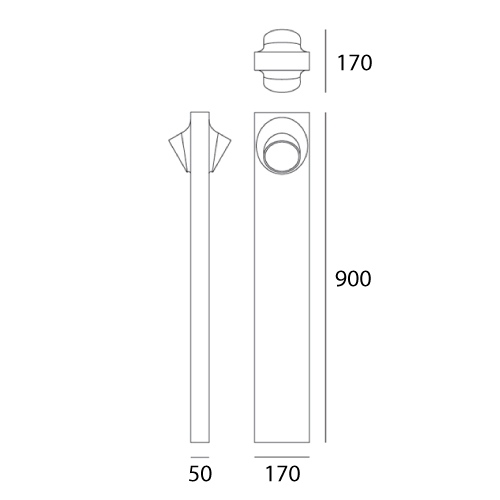

DIMENSIONS
  • Length: 170 mm
  • Width: 170 mm
  • Height: 900 mm
SOURCES INCLUDED
  • Category: Led
  • Number: 2
  • Watt: 6,5W
  • Color temperature (K): 3000K
  • CRI: 80
