Cefiso 14 - 40° 3000K Gray/white

IP65
2D Model
  • Cefiso14_2D.dwg
  • Cefiso14_2D.dxf
3D Model
  • Cefiso14_3D.3ds
  • Cefiso14_3D.stp
Silhouette
  • Cefiso14_sil.jpg
Instructions
  • Istruzioni_montaggio
DiaLux ULD File
  • T418039W00.uld
IES Europe
  • T418039W00.IES
IES USA
  • T418039W00.IES
LDT File
  • T418039W00.LDT
LDT PDF
  • T418039W00.PDF
LDT Image

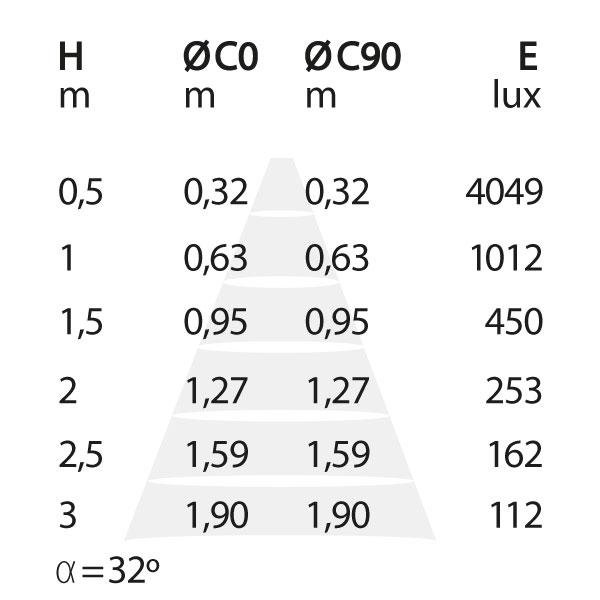

  • Cone diagram

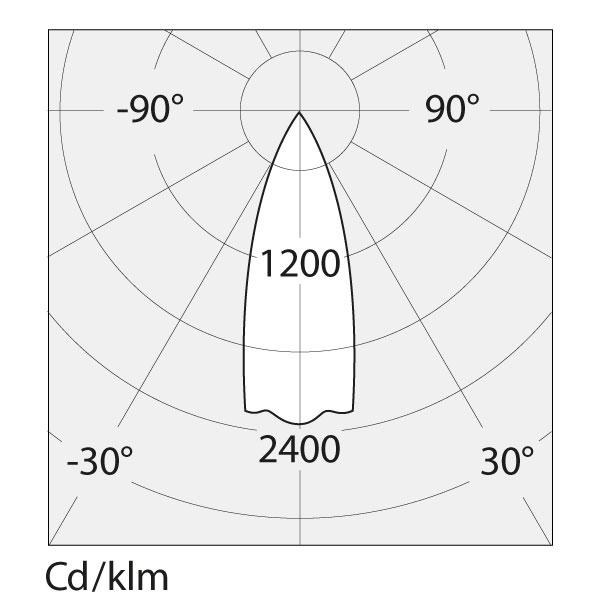

  • Polar curve
Other
  • Diagramma di abbagliamento
  • Diagramma polare
  • Diagramma polare 3D
  • Flusso zonale
  • T418039W00.PDF
FEATURES
  • Article Code: T418039W00
  • Colour: Gray/white
  • Installation: FloorWall
  • Material: Aluminum, tempered glass, methacrylate
  • Series: Architectural Outdoor
  • Environment: Outdoor
  • Area contract: Outdoor
  • design by: Alessandro Pedretti
LUMINAIRE
  • Watt: 23W
  • Voltage: 220V-240V
  • Delivered lumens output: 1654lm
  • CCT: 3000K
  • Efficiency: 70%
  • Efficacy: 71.92lm/W
  • CRI: 80

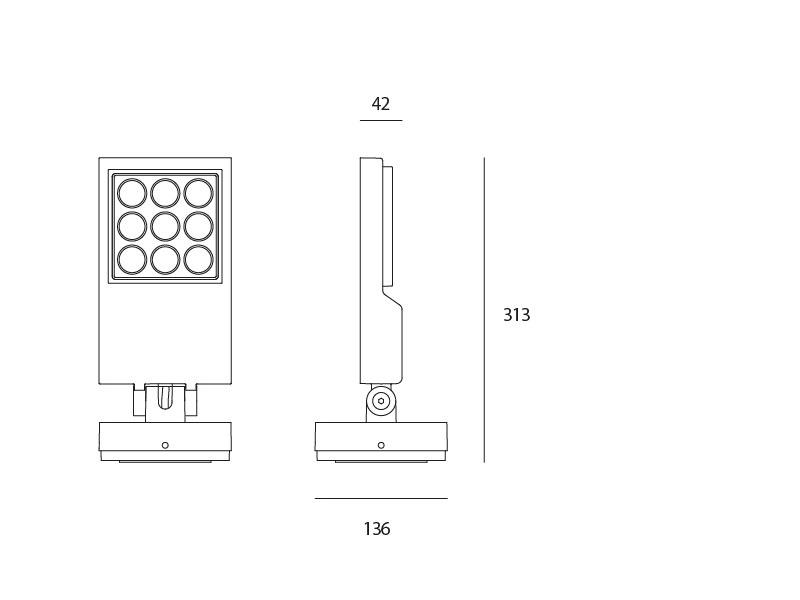

DIMENSIONS
  • Width: cm 4.2
  • Height: cm 31.3
  • Base Width: cm 13.6
  • Impact Resistance: IK10
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 23W
  • Color temperature (K): 3000K
  • CRI: 80
AWARDS

Red dot design award 2012
