Nuda 50 Bilateral Rust

IP65
2D Model
  • AutoCAD drawing file (.dwg)
  • AutoCAD drawing exchange file (.dxf)
3D Model
  • 3D Studio (.3ds)
  • STEP (.stp; .step)
Silhouette
  • Nuda floor 50 Bilateral.jpg
Instructions
  • Istruzioni_montaggio_terra
DiaLux ULD File
  • T083710.uld
IES Europe
  • T083710.IES
IES USA
  • T083710.IES
LDT File
  • T083710.LDT
LDT PDF
  • T083710.pdf
LDT Image
  • Polar curve
  • Isolux
  • Light beam
Other
  • T083710.PDF
FEATURES
  • Article Code: T083710
  • Colour: Rust
  • Installation: Floor
  • Material: Methacrylate, painted aluminium
  • Series: Architectural Outdoor
  • Environment: Outdoor
  • Emission: Direct
  • design by: Ernesto Gismondi
LUMINAIRE
  • Watt: 8W
  • Voltage: 220V-240 V
  • Delivered lumens output: 147lm
  • CCT: 0K
  • Efficiency: 36%
  • Efficacy: 18.37lm/W
  • CRI: 0

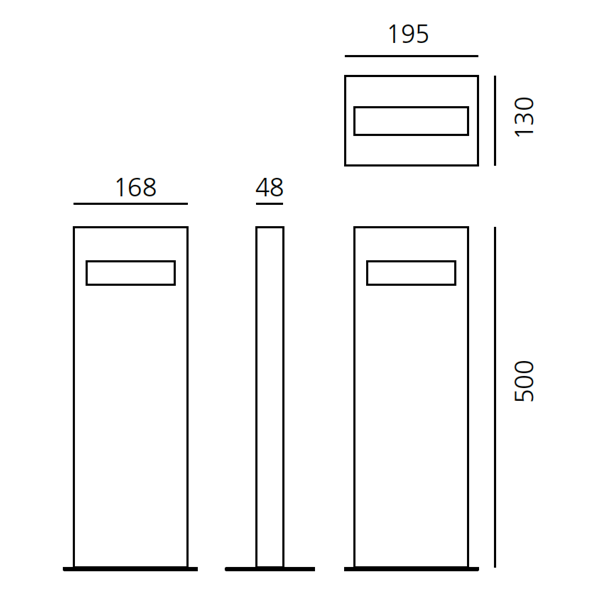

DIMENSIONS
  • Length: cm 16.8
  • Width: cm 4.8
  • Height: cm 50
  • Impact Resistance: IK06
  • Glow Wire Test: 650°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 8W
  • Color temperature (K): 3000K
  • CRI: 80
Notes

Floor fixing with ground mounting plate.
