Molla Gray/white

IP65

Downloadable files

2D Model
  • Molla.dwg
  • Molla.dxf
3D Model
  • Molla.3ds
  • Molla.stp
Silhouette
  • Molla.jpg
Instructions
  • Y513000033C F_IS MOLLA.pdf
DiaLux ULD File
  • T4190NLW00.uld
IES Europe
  • T4190NLW00.IES
IES USA
  • T4190NLW00.IES
LDT File
  • T4190NLW00.LDT
LDT PDF
  • T4190NLW00.PDF
FEATURES
  • Product Code: T4190NLW00
  • Colour: Gray/white
  • Installation: Wall
  • Material: Aluminum, composite technopolymer, methacrylate, silk screened glass
  • Series: Architectural Outdoor
  • Environment: Outdoor
  • Area contract: Residential
  • design by: Ernesto Gismondi
LUMINAIRE
  • Power Supply: Electronic Integrated
  • Watt: 12W
  • Voltage: 220V-240V
  • Delivered lumen output: 618lm
  • CCT: 3000K
  • Efficiency: 55%
  • Efficacy: 51.49lm/W
  • CRI: 90

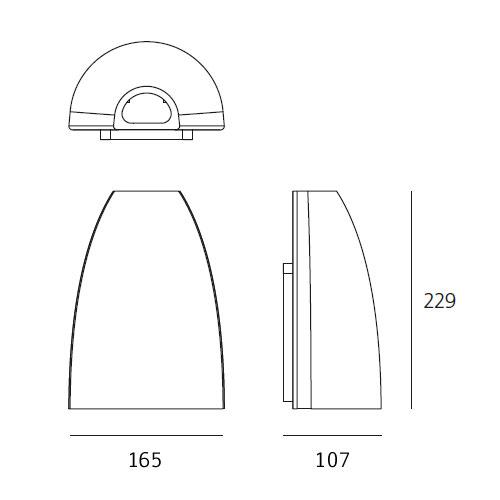

DIMENSIONS
  • Length: 163 mm
  • Width: 106 mm
  • Height: 229 mm
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 3W
  • Delivered lumen output: 55lm
  • Color temperature (K): 3000K
  • CRI: 80 typ
  • Category: Led
  • Number: 1
  • Watt: 10W
  • Delivered lumen output: 350lm
  • Color temperature (K): 3000K
  • CRI: 82
Notes

The large beam is obtained by the combination of a monochromatic LED light source with a reflector. The narrow beam is obtained by the combination of a monochromatic LED light source with a high-performance projector.

Effective power 14,3W.
