Alphabet of light circular 90 suspension

IP20 Regulable:

Downloadable files

2D Model
  • Alphabet of light circular suspension 900.dwg
  • Alphabet of light circular suspension 900.dxf
3D Model
  • Alphabet of light circular suspension 900.3ds
  • Alphabet of light circular suspension 900.stp
Silhouette
  • Alphabet of Light circular 90.jpg
Instructions
  • Y513000819C F_IS ALPHABET 900 CIRCULAR.pdf
  • Y513001294B F_IS KIT PROLUNGA CAVI ALIM-CAVI SOSPENSIONE AOL LINEAR-CIRC....pdf
3D BIM Revit
  • ARTEMIDE-Alphabet of Light-StandAlone.zip
DiaLux ULD File
  • 1206000A.uld
IES Europe
  • 1206000A.IES
IES USA
  • 1206000A.IES
LDT File
  • 1206000A.LDT
LDT PDF
  • 1206000A.PDF
CARACTERíSTICAS
  • Código de Producto: 1206000A
  • Color: White
  • Instalación: Suspensión
  • Material: Soporte de aluminio, elemento difusor de tecnopolímero opalino.
  • Serie: Design Collection
  • Entorno de uso: Interior
  • Emisión: Diffused
  • diseño: BIG - Bjarke Ingels Group
LUMINARIA
  • Potencia (W): 44W
  • Tensión de alimentación: 220-240V
  • Flujo Luminoso (lm): 5783lm
  • CCT: 3000K
  • Efficiency: 78%
  • Efficacy: 131.43lm/W
  • CRI: 90
  • Dimmable Typology: Push/DALI

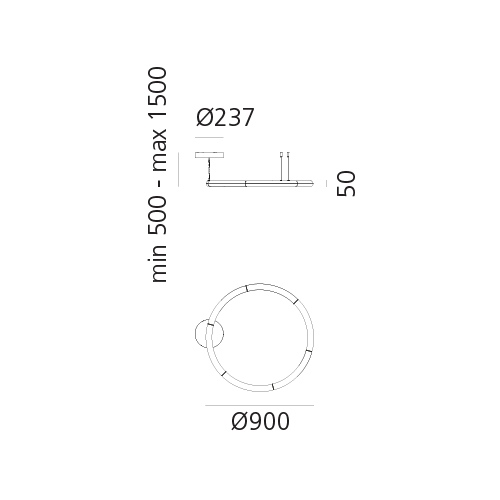

DIMENSIONES
  • Altura: 50 mm
  • Diámetro: 900 mm
  • Altura máxima del techo: 1500 mm
  • Prueba calorífica: 650°
FUENTES DE LUZ INCLUIDAS
  • Categoría: Led
  • Numero: 1
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L70 (10K) 60000h
Notas

Patent Pending MI102016000025996.
Constant current SELV.

ACCESORIOS
4.5 m extension feeding cable + 3 suspension wires L=6m for AoL linear 120/180/240 and AoL circular Ø90
1209000A
Descárgalos todos Ficha tecnica PDF
