Altrove Suspension LED Direct/Indirect emission - App Compatible

IP20

Downloadable files

2D Model
  • Altrove1000 Sospensione_2D.dwg
  • Altrove1000 Sospensione_2D.dxf
3D Model
  • Altrove1000 Sospensione_3D.3ds
  • Altrove1000 Sospensione_3D.stp
Silhouette
  • Altrove-1000-susp.jpg
Instructions
  • Y513000911--FOGLIO ISTRUZ. ALTROVE RGB LED S.pdf
  • Y513001035A-Artemide APP.pdf
IES Europe
  • 1340150APP.IES
  • 1340150APP_W.IES
IES USA
  • 1340150APP.IES
  • 1340150APP_W.IES
LDT File
  • 1340150APP.LDT
  • 1340150APP_W.LDT
LDT PDF
  • 1340150APP.PDF
  • 1340150APP_W.PDF
CARACTERíSTICAS
  • Código de Producto: 1340150app
  • Color: Aluminium
  • Instalación: Suspensión
  • Material: Methacrylate, aluminium
  • Serie: Design Collection
  • Entorno de uso: Interior
  • diseño: Carlotta de Bevilacqua
LUMINARIA
  • Potencia (W): 82W
  • Flujo Luminoso (lm): 4699lm
  • CCT: 3000K
  • Efficiency: 42%
  • Efficacy: 57.30lm/W
  • CRI: 90

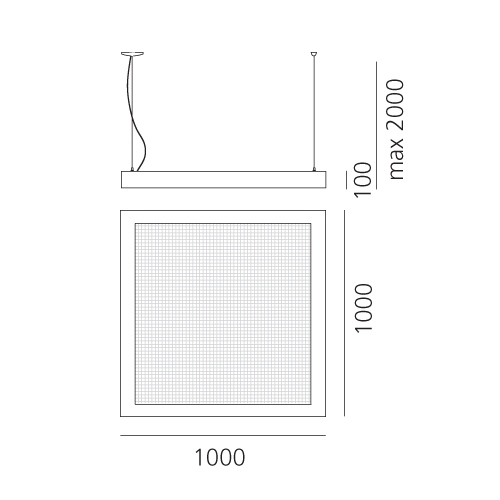

DIMENSIONES
  • Longitud: 1000 mm
  • Ancho: 1000 mm
  • Altura: 100 mm
  • Altura máxima del techo: 2000 mm
FUENTES DE LUZ INCLUIDAS
  • Categoría: Led RGB
  • Numero: 1
  • Potencia (W): 80W
  • Categoría: Led
  • Numero: 1
  • Potencia (W): 90W
  • Temperatura de Color (K): 3000K
ACCESORIOS
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
ALTROVE MWL KIT SOSP/ALIMENT.
1339010A
Descárgalos todos Ficha tecnica PDF
