Yang LED - App Compatible

IP20

Downloadable files

2D Model
  • Yang_Led.dwg
  • Yang_Led.dxf
3D Model
  • Yang_Led.3ds
  • Yang_Led.stp
Silhouette
  • Yang LED_Silhouette
Instructions
  • Y513000906A FOGLIO ISTRUZ YANG LED APP.pdf
IES Europe
  • 0324010APP.IES
IES USA
  • 0324010APP.IES
LDT File
  • 0324010APP.LDT
LDT PDF
  • 0324010APP.PDF
CARACTERíSTICAS
  • Código de Producto: 0324010APP
  • Color: Transparente
  • Instalación: Pie
  • Material: Metacrilato,policarbonato
  • Serie: Design Collection
  • Entorno de uso: Interior
  • Emisión: Diffused
  • diseño: Carlotta de Bevilacqua
LUMINARIA
  • Power Supply: Electrónico integrado
  • Potencia (W): 42W
  • Flujo Luminoso (lm): 1060lm
  • CCT: 3000K
  • Efficiency: 26%
  • Efficacy: 25.24lm/W
  • CRI: 90

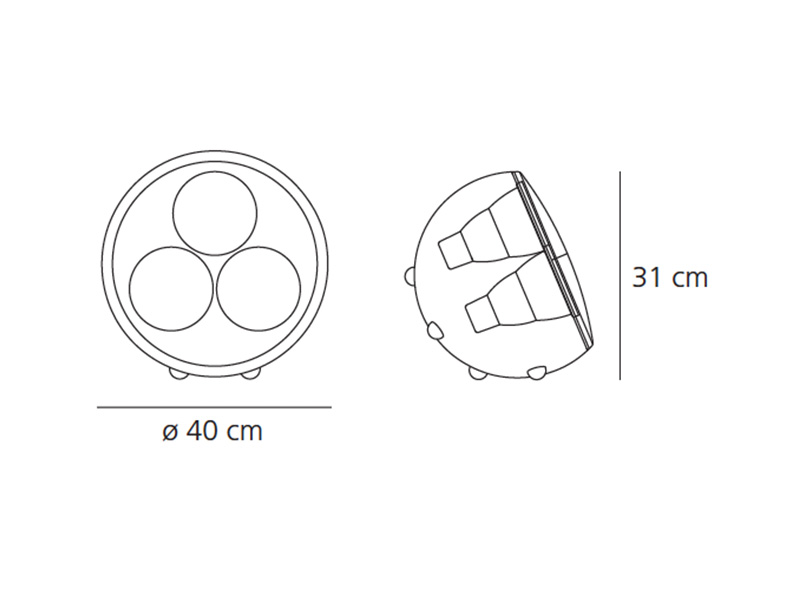

DIMENSIONES
  • Altura: 310 mm
  • Diámetro: 400 mm
  • Resistencia al impacto: N/D
  • Prueba calorífica: N/D°
FUENTES DE LUZ INCLUIDAS
  • Categoría: Led
  • Numero: 1
  • Potencia (W): 36.36W
  • Flujo Luminoso (lm): 3899lm
  • Temperatura de Color (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
  • Efficacy: 107lm/W
  • Service Life: 50000-L70
ACCESORIOS
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
