Mimesi 3000K - App Compatible

IP20 Regulable:

Downloadable files

2D Model
  • Mimesi.dwg
  • Mimesi.dxf
3D Model
  • Mimesi.3ds
  • Mimesi.stp
Silhouette
  • Mimesi.jpg
Instructions
  • y513000055B mimesi terra.pdf
  • Y513001035A-Artemide APP.pdf
IES Europe
  • 1835010APP.IES
IES USA
  • 1835010APP.IES
LDT File
  • 1835010APP.LDT
LDT PDF
  • 1835010APP.PDF
Other

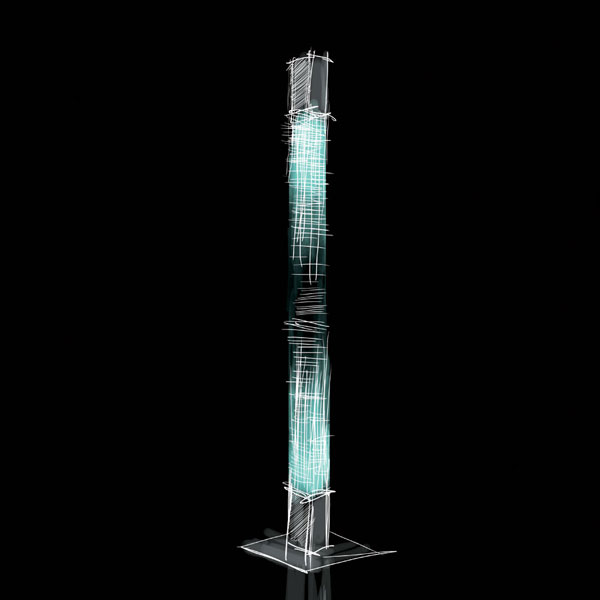

  • Schizzo progettuale
CARACTERíSTICAS
  • Código de Producto: 1835010APP
  • Color: Gris aluminio
  • Instalación: Pie
  • Material: Base de acero, estructura de aluminio y tecnopolímero transparente grabado, reflector de aluminio
  • Serie: Design Collection
  • Entorno de uso: Interior
  • diseño: Carlotta de Bevilacqua
LUMINARIA
  • Potencia (W): 42W
  • Tensión de alimentación: 220/240V
  • Flujo Luminoso (lm): 3733lm
  • CCT: 3000K
  • Efficiency: 82%
  • Efficacy: 88.89lm/W
  • CRI: 90
  • Dimmable Typology: APP
DIMENSIONES
  • Longitud: 120 mm
  • Ancho: 120 mm
  • Altura: 1930 mm
  • Longitud base: 300 mm
  • Ancho base: 300 mm
  • Resistencia al impacto: N/D
  • Prueba calorífica: 650°
FUENTES DE LUZ INCLUIDAS
  • Categoría: Led
  • Numero: 1
  • Potencia (W): 3W
  • Flujo Luminoso (lm): 100lm
  • Temperatura de Color (K): 6000K
  • CRI: 80
  • Categoría: Led
  • Numero: 1
  • Potencia (W): 42W
  • Flujo Luminoso (lm): 4042lm
  • Temperatura de Color (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
ACCESORIOS
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Descárgalos todos Ficha tecnica PDF
