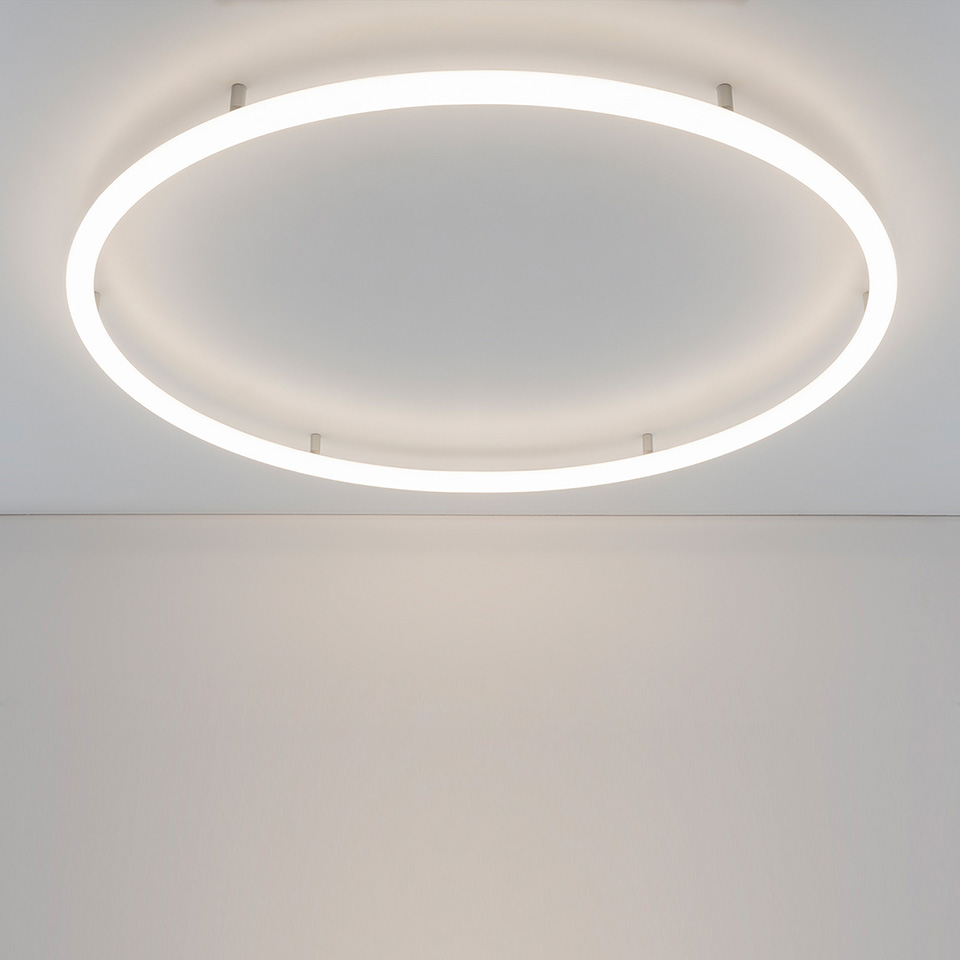

Alphabet of light circular 155 wall/ceiling semi-recessed

IP20 Regulable:

Downloadable files

2D Model
  • Alphabet of Light circular w/c semi-recessed 155.dwg
  • Alphabet of Light circular w/c semi-recessed 155.dxf
3D Model
  • Alphabet of Light circular w/c semi-recessed 155.3ds
  • Alphabet of Light circular w/c semi-recessed 155.stp
Silhouette
  • Alphabet of Light circular semi-recessed 155.jpg
Instructions
  • Y513001054A F_IS DRIVER ALPHABET SEMI RECESSED EU.pdf
  • Y513001065--FOGLIO ISTRUZ.ALPHABET SR CIRCLE 155.pdf
3D BIM Revit
  • ARTEMIDE-Alphabet of Light-StandAlone.zip
IES Europe
  • 1429000A.IES
IES USA
  • 1429000A.IES
LDT File
  • 1429000A.LDT
LDT PDF
  • 1429000A.PDF
CARACTERíSTICAS
  • Código de Producto: 1429000A
  • Color: White
  • Instalación: Techo, Empotrado
  • Material: Soporte de aluminio, elemento difusor de tecnopolímero opalino.
  • Serie: Design Collection
  • Entorno de uso: Interior
  • Emisión: Diffused
  • diseño: BIG - Bjarke Ingels Group
LUMINARIA
  • Potencia (W): 70W
  • Tensión de alimentación: 220-240V
  • Flujo Luminoso (lm): 10280lm
  • CCT: 3000K
  • Efficiency: 78%
  • Efficacy: 146.86lm/W
  • CRI: 90
  • Dimmable Typology: Push & APP,Push/DALI

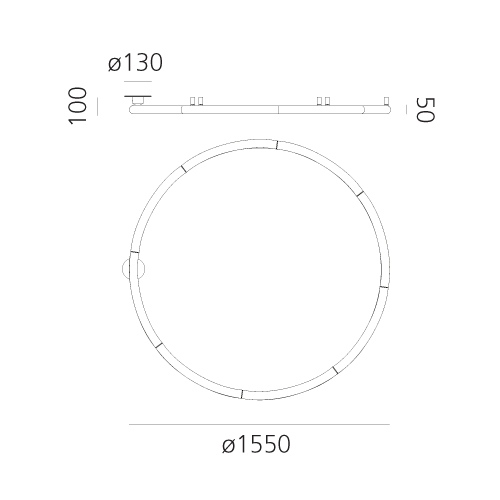

DIMENSIONES
  • Ancho: 1640 mm
  • Altura: 100 mm
  • Diámetro: 1550 mm
  • Diámetro base: 130 mm
  • Prueba calorífica: 650°
FUENTES DE LUZ INCLUIDAS
  • Categoría: Led
  • Numero: 1
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L70 (10K) 60000h
Notas

Patent Pending MI102016000025996.
Constant current SELV.
Driver supplied separately.

ACCESORIOS
Driver - CC - 220-240 Vac - 350x80x23 (LxWxH) - DALI / 1-10 / PUSH
DV1036
Driver - 38W - CC 110-240V - 550mA - APP/Push
DV1036APP
Descárgalos todos Ficha tecnica PDF
