Katà Métron - Diffused - Direct Emission - 3000K - 1184 - Black

IP20 Regulable:

Downloadable files

2D Model
  • Katà Métron 2D
3D Model
  • Kata Metron 3D
Silhouette
  • Kata Metron Diffused.jpg
Instructions
  • Y513001752 FOGLIO ISTRUZ MODULI KATÁ METRÒN.pdf
  • Y513001775 F_IS PIASTRE SPOT KATÁ METRÒN.pdf
  • Y513001776 F ISTRUZ GIUNTI INTERMEDI KATÁ METRÒN.pdf
IES Europe
  • KA11104.IES
IES USA
  • KA11104.IES
LDT File
  • KA11104.LDT
LDT PDF
  • KA11104.PDF
CARACTERíSTICAS
  • Código de Producto: KA11104
  • Color: Black
  • Instalación: Techo, Suspensión
  • Serie: Architectural Indoor
  • diseño: Mario Cucinella
LUMINARIA
  • Potencia (W): 23W
  • Flujo Luminoso (lm): 3085lm
  • CCT: 3000K
  • Efficiency: 81%
  • Efficacy: 134.13lm/W
  • CRI: 90
  • Dimmable Typology: Dali

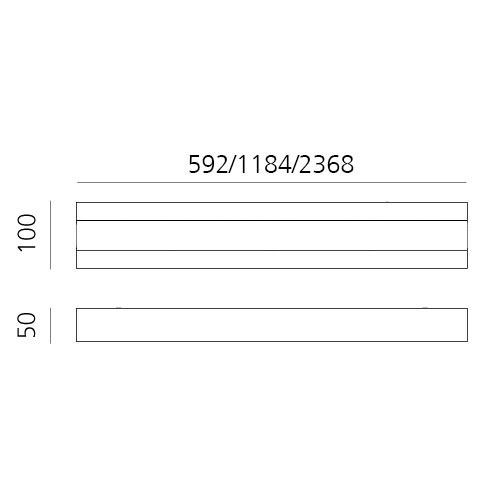

DIMENSIONES
  • Longitud: 1184 mm
  • Ancho: 100 mm
  • Altura: 50 mm
Notas

Uses 1 DALI address.

ACCESORIOS
Katà Métron - Accessories - End Cap (Diffused Modules) - Black
KZ01504
Katà Métron - Accessories - Coverwires and joints (Diffused Modules) - Black
KZ01604
Katà Métron - Power Supply - Ceiling Rose - Dimmable DALI
KZ02504
Katà Métron - Power Supply - Ceiling Rose - Dimmable APP
KZ02604
A.39 - Opal Diffuser in Polycarbonate - L=10000mm
AT10000
A.39 - Opal Diffuser in Polycarbonate - L=25000mm
AT10800
Katà Métron - Accessories - Suspension Kit (End modules) - Black
KZ01004
Katà Métron - Accessories - Suspension Kit (Intermediate joint elements) - Black
KZ01104
Katà Métron - Accessories - Ceiling Kit (End modules) - Black
KZ01204
Katà Métron - Accessories - Ceiling Kit (Intermediate joint elements) - Black
KZ01304
Katà Métron - Accessories - End Cap (Refractive, Spot/Pendant Modules) - Black
KZ01404
A.39 - Opal Diffuser in Polycarbonate - L=1184mm
AT10100
A.39 - Opal Diffuser in Polycarbonate - L=50000mm
AT10900
