LineaLed 8W 3000K

IP65/67

Downloadable files

2D Model
  • LineaLed 8W.dwg
3D Model
  • LineaLed.3ds
  • LineaLed.stp
Silhouette
  • Sil-Linealed.jpg
Instructions
  • Y513000539_0_FOGLIO ISTRUZ. LINEALED CARR - RGB - WW.PDF
IES Europe
  • NL7419VSK0.IES
IES USA
  • NL7419VSK0.IES
LDT File
  • NL7419VSK0.LDT
LDT PDF
  • NL7419VSK0.PDF
CARACTERíSTICAS
  • Código de Producto: NL7419VSK0
  • Instalación: Empotrado
  • Material: Aluminium,protection glass
  • Serie: Architectural Outdoor
  • Área de uso: Urban
  • diseño: Carlotta de Bevilacqua
LUMINARIA
  • Power Supply: electronic remote ballast
  • Potencia (W): 8W
  • Tensión de alimentación: 24Vdc
  • Flujo Luminoso (lm): 184lm
  • CCT: 3000K
  • Efficiency: 31%
  • Efficacy: 22.98lm/W
  • CRI: 75

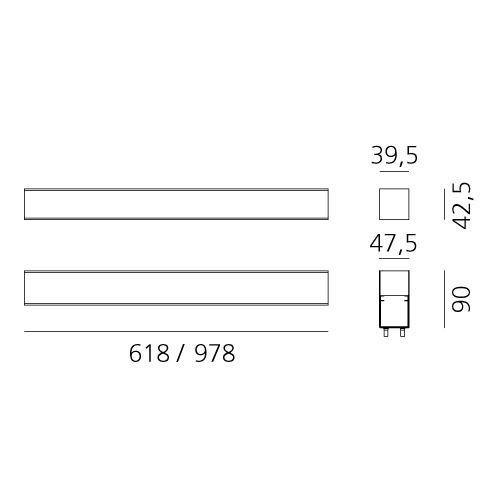

DIMENSIONES
  • Longitud: 978 mm
  • Ancho: 47 mm
  • Altura: 90 mm
FUENTES DE LUZ INCLUIDAS
  • Categoría: Led
  • Numero: 1
  • Potencia (W): 8W
  • Flujo Luminoso (lm): 432
  • Temperatura de Color (K): 3000K
  • Tensión de alimentación: 24 Vdc
Notas

Electrical connection to the ballast by meansof 100cm-long two-pole cable H05RN-F,with IP67 quick-release terminal block which is supplied with the fixture and can be housed in the recessing box

Connect a maximum number of 10 fixtures in a continuous line.

ACCESORIOS
Housing L=982mm
NL76700
Housing end cap (pair) - 46,5 x 62,5 x 1,5mm
NL76750
Female power connector for discontinuos connection
NL19023
Male power connector for discontinuos connection
NL19021
ALIMENT. 40W 24Vdc IP67
NL62040
CONNETTORE ALIMENTAZIONE + TAPPO
NL19052
ALIMENT. 70W 24Vdc IP67
NL89080
ALIMENT. 150W 24Vdc IP67
NL62880
LINEALED STAFFA GIUNZIONE C/CASSA
NL75810
Descárgalos todos Ficha tecnica PDF
