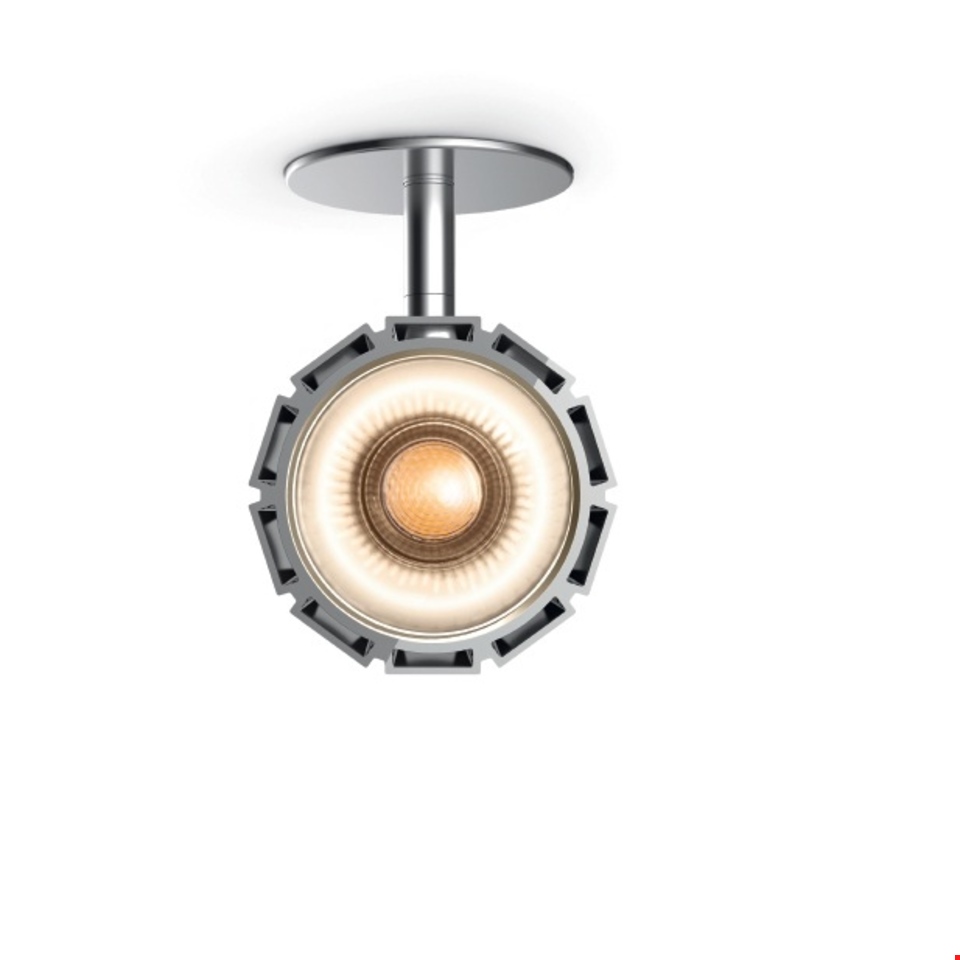

M141410 - Airlite semi-encastré stable white Noir 3000K 17°
IP
20
Downloadable files
Silhouette
Instructions
Y503300207 - INSTRUCTION SHEETAIRLITE.pdf
DiaLux ULD File
M141410.uld
IES Europe
M141410.IES
IES USA
M141410.IES
LDT File
M141410.LDT
LDT PDF
M141410.PDF
CARACTÈRISTIQUES
Code Produit :
M141410
Couleur:
Noir
Installation:
Projecteur
Séries:
Scenarios
Type de projet:
Commerces
dessiné par:
Carlotta de Bevilacqua, Paola di Arianello
LUMINAIRE
Watt:
35W
Tension:
220-240V
Flux Lumineux (lm):
3248lm
CCT:
3000K
Efficiency:
76%
Efficacy:
92.8lm/W
CRI:
90

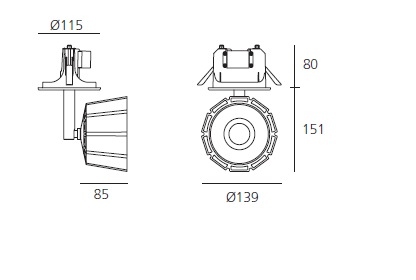

DIMENSIONS
Diamètre:
139 mm
Base Width:
80 mm
Poids:
kg 1,3
SOURCES INCLUES
Catégorie:
Led
Nombre:
1
Watt:
30W
Flux Lumineux (lm):
3353lm
Température de Couleur (K):
3000K
CRI:
=80 (min.)
Color Tolerance:
MacAdam 3SDCM
Efficacy:
112lm/W
Service Life:
>50000h
ACCESSOIRES
Lente per emissione elittica
M078700
Filtro soft
M078800
Griglia frangiluce
M078400
Paraluce asimmetrico
M078500
Alette orientabili
M078600
Portaccessori
M077810
Filtro cromatico
M078900
Filtro cromatico
M079000
Filtro cromatico
M079100
