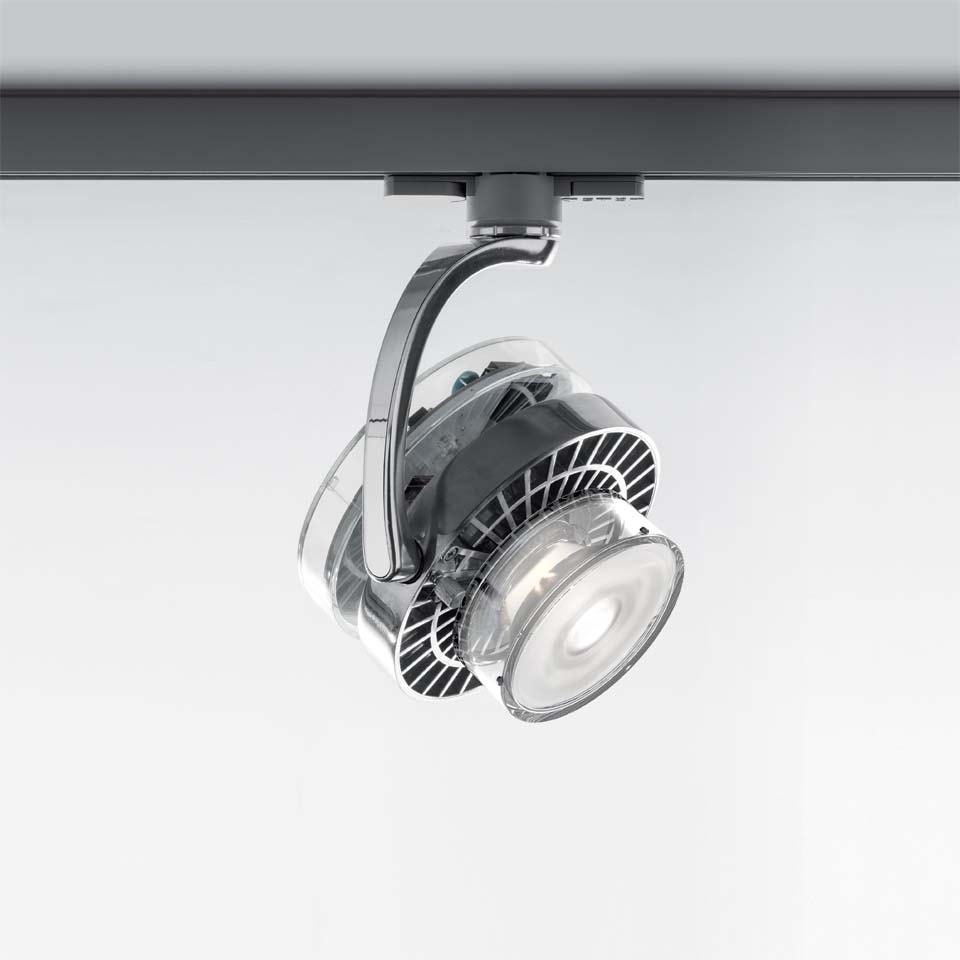

Cata TIR Track - 4000K + Lens 56°

IP20 Dimmable:

Downloadable files

3D Model
  • Cata TIR - Track - Only Optic.zip
  • Cata TIR - Track - Optic + 1 Glass Filter (M057080 + M282007 / M285207 / M281745 / M281755 / M281735).zip
  • Cata TIR - Track - Optic + Adjustable Dowsers (M057080 + M059910).zip
  • Cata TIR - Track - Optic + Anti-dazzle Louvre (M057080 + M282100).zip
  • Cata TIR - Track - Optic + Anti-dazzle Louvre + 1 Glass Filter (M057080 + M282100 + M282007 / M285207 / M281745 / M281755 / M281735).zip
  • Cata TIR - Track - Optic + Anti-dazzle Louvre + Adjustable Dowsers (M057080 + M282100 + M059910).zip
Silhouette
  • Cata TIR Binario.jpg
Instructions
  • CATA Light Unit Y503300203.pdf
  • CATA Optic Unit Y503300204.pdf
DiaLux ULD File
  • M0569N83+M109800.uld
IES Europe
  • M0569N83+M109800+M281735.IES
  • M0569N83+M109800+M281745.IES
  • M0569N83+M109800+M281755.IES
  • M0569N83+M109800+M282007.IES
  • M0569N83+M109800+M282100.IES
  • M0569N83+M109800+M285207.IES
  • M0569N83+M109800.IES
IES USA
  • M0569N83+M109800+M281735.IES
  • M0569N83+M109800+M281745.IES
  • M0569N83+M109800+M281755.IES
  • M0569N83+M109800+M282007.IES
  • M0569N83+M109800+M282100.IES
  • M0569N83+M109800+M285207.IES
  • M0569N83+M109800.IES
LDT File
  • M0569N83+M109800+M281735.LDT
  • M0569N83+M109800+M281745.LDT
  • M0569N83+M109800+M281755.LDT
  • M0569N83+M109800+M282007.LDT
  • M0569N83+M109800+M282100.LDT
  • M0569N83+M109800+M285207.LDT
  • M0569N83+M109800.LDT
LDT PDF
  • M0569N83+M109800+M281735.PDF
  • M0569N83+M109800+M281745.PDF
  • M0569N83+M109800+M281755.PDF
  • M0569N83+M109800+M282007.PDF
  • M0569N83+M109800+M282100.PDF
  • M0569N83+M109800+M285207.PDF
  • M0569N83+M109800.PDF
CARACTÈRISTIQUES
  • Code Produit : M0569N83 + M109800
  • Couleur: Anodisé brillant
  • Installation: Rail
  • Séries: Architectural Indoor
  • dessiné par: Carlotta de Bevilacqua
LUMINAIRE
  • Watt: 22W
  • Flux Lumineux (lm): 1784lm
  • CCT: 4000K
  • Efficiency: 92%
  • Efficacy: 81.08lm/W
  • CRI: 90

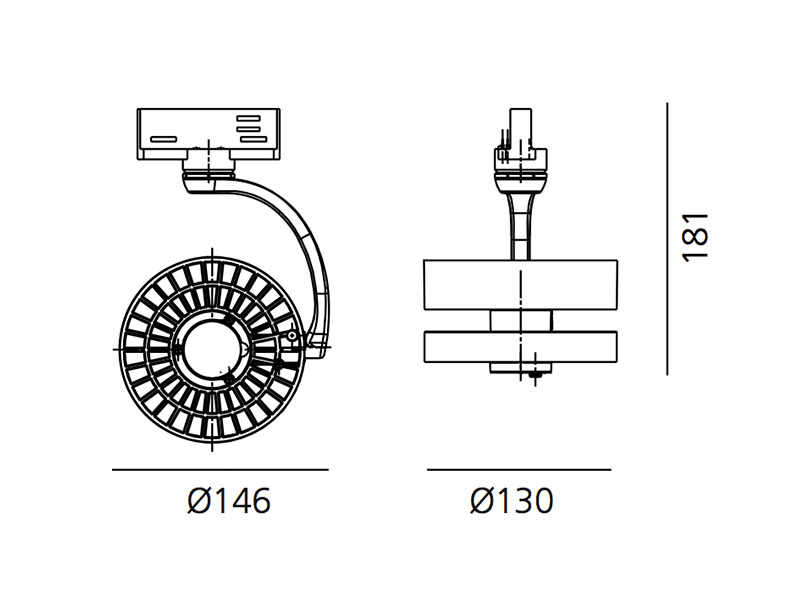

DIMENSIONS
  • Hauteur: 181 mm
  • Diamètre: 130 mm
  • Diamètre de la base: 130 mm
  • Inclinaison: -90+90
  • Rotation: 360°
  • Poids: kg 0,85
SOURCES INCLUES
  • Catégorie: Led
  • Nombre: 1
  • Watt: 22W
  • Température de Couleur (K): 4000K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
  • Service Life: L70(6K) 36000h
AWARDS

2014 - Reddot Design Award

Remarques

If there is no DALI-SwitchDim bus, the luminaire can be dimmed using the button on the device

ACCESSOIRES
Accessories holder
M057080
Adjustable dowsers
M059910
Lens for elliptical emission
M282007
Chromatic filter yellow
M281745
Chromatic filter red
M281755
Chromatic filter blue
M281735
Anti-dazzle louvre
M282100
Soft filter
M056807
