Pipe Suspension LED 2700K

IP20 Dimmable:

Downloadable files

2D Model
  • Pipe_Susp.dwg
  • Pipe_Susp.dxf
3D Model
  • Pipe_Susp.3ds
  • Pipe_Susp.stp

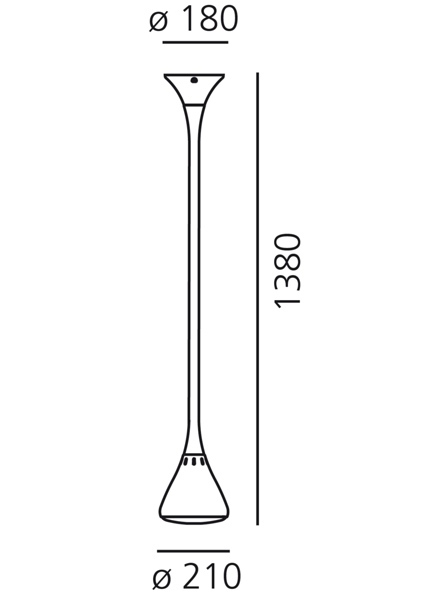

Silhouette
  • Pipe_Suspension_Silhouette
Instructions
  • Y513000375 Pipe led sospensione.pdf
IES Europe
  • 0672W10A.IES
IES USA
  • 0672W10A.IES
LDT File
  • 0672W10A.LDT
LDT PDF
  • 0672W10A.PDF
CARACTÈRISTIQUES
  • Code Produit : 0672W10A
  • Couleur: Transparent
  • Installation: Suspension
  • Matériaux: Polycarbonate, steel, silicon
  • Séries: Design Collection
  • Environnement: Indoor
  • dessiné par: Herzog & de Meuron
LUMINAIRE
  • Power Supply: Electronique Intgr
  • Watt: 27W
  • Tension: 220-240V
  • Flux Lumineux (lm): 1763lm
  • CCT: 2700K
  • Efficiency: 67%
  • Efficacy: 65.30lm/W
  • CRI: 90
  • Dimmable Typology: Push
DIMENSIONS
  • Diamètre: 210 mm
  • Diamètre de la base: 180 mm
  • Longueur max. extension: 1380 mm
  • Résistance à l’impact: IK6
  • Test au fil incandescent: 960°
SOURCES INCLUES
  • Catégorie: Led
  • Nombre: 1
  • Watt: 24.2W
  • Flux Lumineux (lm): 2607lm
  • Température de Couleur (K): 2700K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
  • Efficacy: 108lm/W
  • Service Life: 50000-L70
AWARDS

2004 Compasso d‘Oro / A.D.I. Milano (Italia) Intel Design 2003 Categoria Design “Augusto Morello” Selezione alla III edizione 2003 Milano (Italia) 2004 Design Plus, light + building Frankfurt am Main Deutschland)

Téléchargez tous Fiche technique PDF
