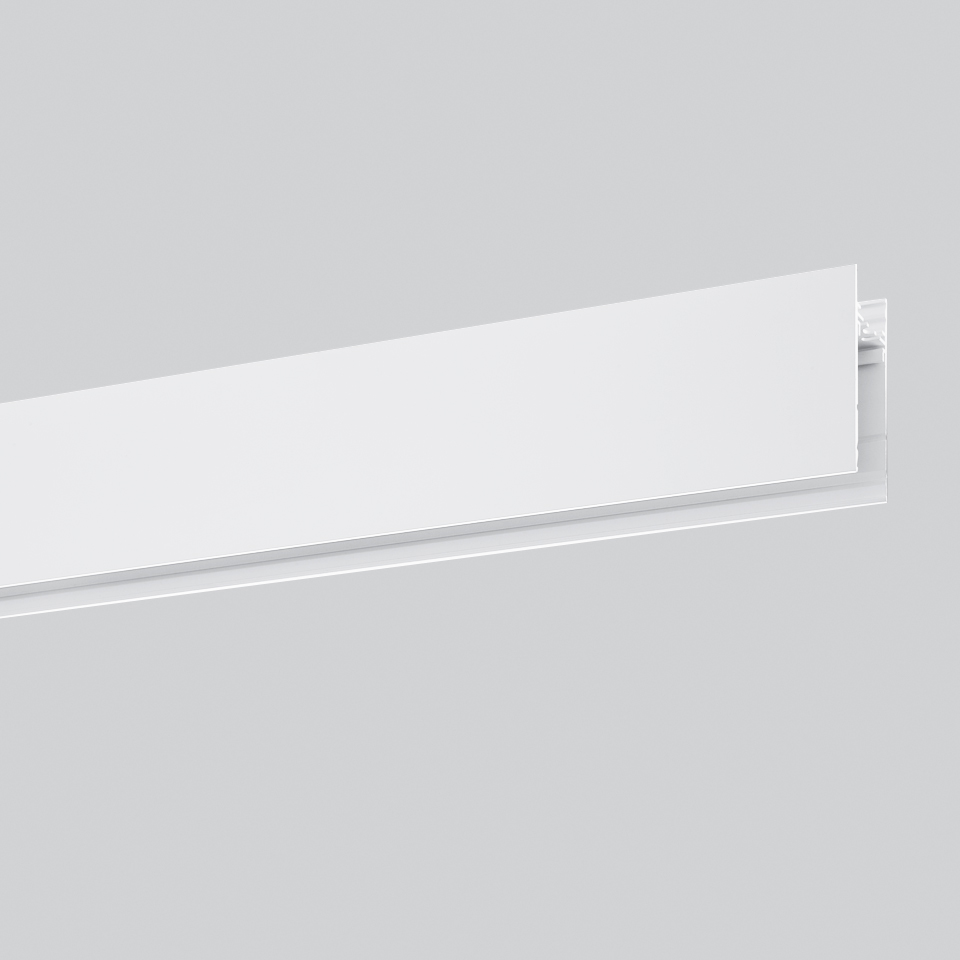

Algoritmo System - Diffused Emission - Structural modules suspension, ceiling, wall - 4736mm White

Downloadable files

2D Model
  • ALGORITMO_SYSTEM_WALL_CEILING_SUSP_4736MM_2D.dwg
  • ALGORITMO_SYSTEM_WALL_CEILING_SUSP_4736MM_2D.dxf
3D Model
  • Accessories.zip
  • ALGORITMO_SYSTEM_WALL_CEILING_SUSP_4736MM_3D.dwg
  • ALGORITMO_SYSTEM_WALL_CEILING_SUSP_4736MM_3D.dxf
Silhouette
  • A. Sharping Moduli Strutturali Sospensione, Soffitto, Parete_Silhouette
Instructions
  • ALGORITMO SYSTEM_CORPS APPARENT_Y503300183#I=C.pdf
  • Y513003059A--F.ISTR.ALGORITMO SYSTEM MECCANICA.pdf
CARACTÈRISTIQUES
  • Code Produit : M199520
  • Couleur: Blanc
  • Installation: Applique, Suspension, Plafonnier
  • Matériaux: Aluminium Extrudé
  • Séries: Architectural Indoor
  • dessiné par: Carlotta de Bevilacqua, Paola di Arianello
DIMENSIONS
  • Longueur : 4730 mm
  • Poids: kg 9,2
ACCESSOIRES
90° angle to mechanically connect of 2 modules on perpendicular planes. Includes through-wire extensions. 0.60 kg. white
M196720
Suspension kit with power supply. Includes 1 single steel suspension cable + 1 power supply cable Length 2 meters. MV (5x1,5mm2+2x0,5mm2) To power fluorescent modules, white LED plates and accent modules.
M189300
90° joint to mechanically connect two recessed modules on one same plane - 0.30 kg - White (To be ordered with kit cover angle cod. AE44001 / AE44004)
M196820
Linear connector
M189000
Bracket for fixing to wall/ceiling (1 piece)
M199400
Suspension kit with power supply. Includes 1 single steel suspension cable + 1 power supply cable Length 2 meters. LV (3x1,5mm2) For supplying LED modules RGB.
M189200
End caps (set of 2) white
M188820
Wall bracket To mechanically connect a wall-mounted module.
M199300
Steel suspension cable with quick adjustment Length 2 meters
M189100
