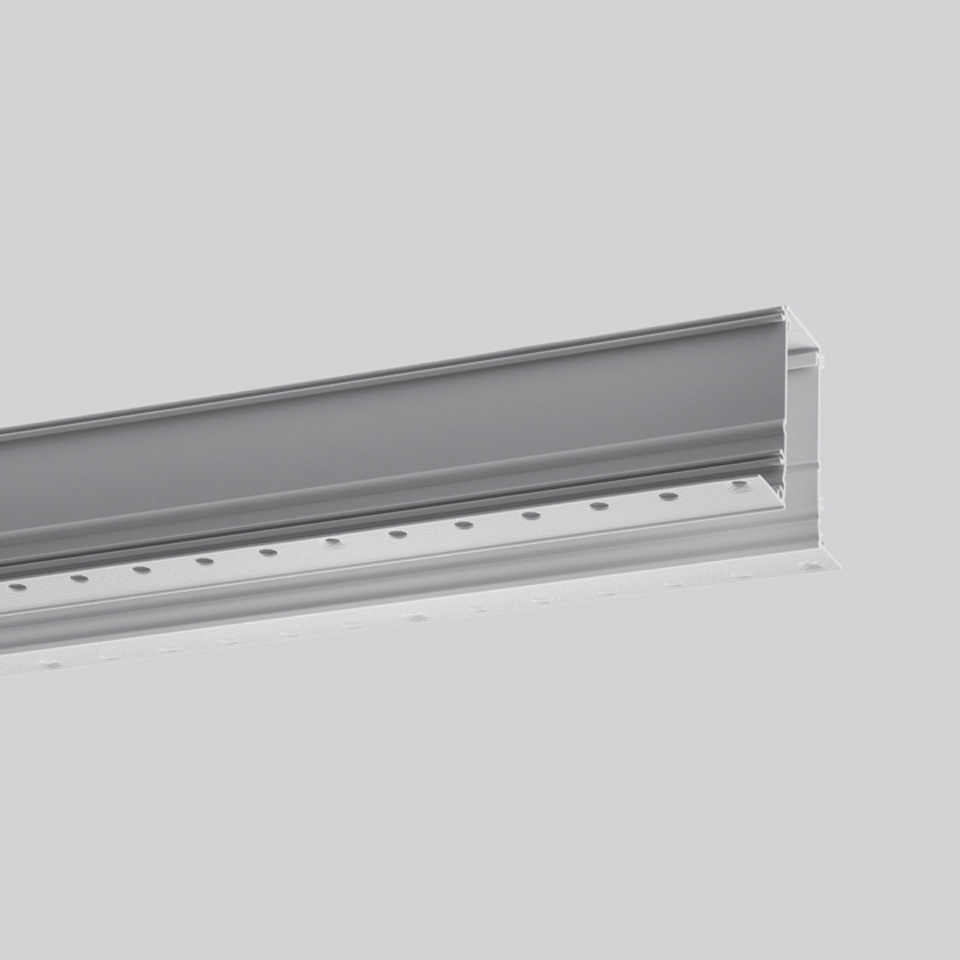

Algoritmo Controlled - Prismoptic Emission - Structural module recessed - Trimless 1184mm

2D Model
  • ALGORITMO_SYSTEM_RECESSED_1184MM_2D.dwg
  • ALGORITMO_SYSTEM_RECESSED_1184MM_2D.dxf
3D Model
  • ALGORITMO_SYSTEM_RECESSED_1184MM_3D.dxf
  • ALGORITMO_SYSTEM_RECESSED_1184MM_3D.dwg
  • Algoritmo System_Trimless_1184_Prismoptic + End Caps.stp
  • Algoritmo System_Trimless_1184_Prismoptic + End Caps.3ds
  • Algoritmo System_Trimless_1184_Controlled Emission + End Caps.stp
  • Algoritmo System_Trimless_1184_Controlled Emission + End Caps.3ds
  • Accessories.zip
Silhouette
  • ALGO SYST_recessed body_sil.jpg
Instructions
  • ALGORITMO SYSTEM_CORPS ENCASTRE_Y503300181#I=C.pdf
DiaLux ULD File
  • M2882W00+M197400+M204800.uld
  • M2882N00+M186700+M204800.uld
  • M2882N01+M186700+M204800.uld
  • M2882W01+M197400+M204800.uld
  • M2882W00+M186700+M204800.uld
  • M2882W01+M217300+M204800.uld
  • M2882W01+M196900+M204800.uld
  • M2882W00+M196900+M204800.uld
  • M2882W00+M217300+M204800.uld
  • M2882N00+M217300+M204800.uld
  • M2882N01+M197400+M204800.uld
  • M2882N01+M217300+M204800.uld
  • M2882N00+M196900+M204800.uld
  • M2882N01+M196900+M204800.uld
  • M2882W01+M186700+M204800.uld
  • M2882N00+M197400+M204800.uld
CARACTÈRISTIQUES
  • Code Produit : M204800
  • Couleur: Anodisé brillant
  • Installation: Encastré
  • Matériaux: Aluminium Extrudé
  • Séries: Architectural Indoor
  • dessiné par: Carlotta de Bevilacqua, Paola di Arianello

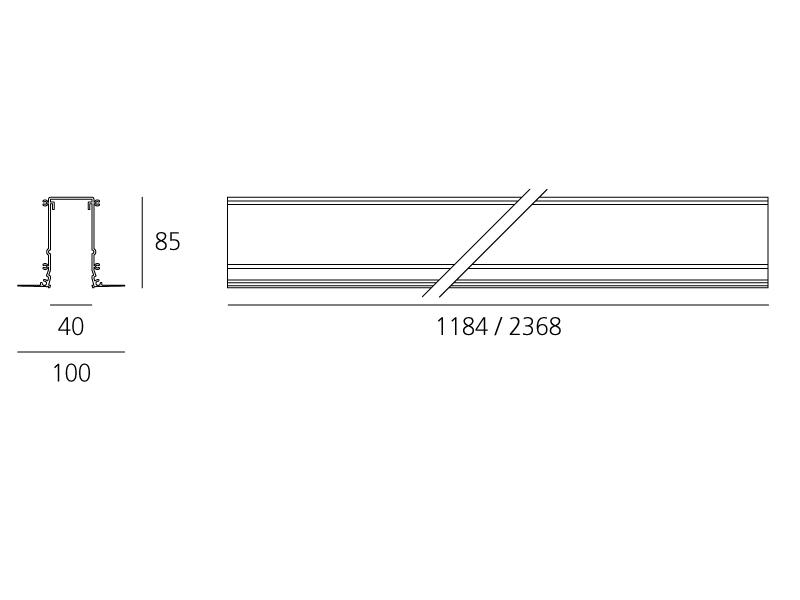

DIMENSIONS
  • Longueur : 1180 mm
  • Largeur de découpe: 62 mm
  • Profondeur de la découpe: 85 mm
  • Forme de la découpe: Rectangulaire
  • Poids: kg 1,8
ACCESSOIRES
90° joint. For the mechanical connection of 2 modules on one same plan - Trimless (To be ordered with kit cover angle cod. AE44001 / AE44004)
M196600
End cap (set of 2).
M197300
Téléchargez tous Fiche technique PDF
