Effetto Round 2 large beams Anthracite Grey

IP65

Downloadable files

2D Model
  • Effetto.dwg
  • Effetto.dxf
3D Model
  • Effetto.3ds
  • Effetto.stp
Silhouette
  • Effetto Rotondo.jpg
Instructions
  • Y513000044A effetto parete LED.pdf
DiaLux ULD File
  • T42112LW10.uld
IES Europe
  • T42112LW20.IES
IES USA
  • T42112LW20.IES
LDT File
  • T42112LW20.LDT
LDT PDF
  • T42112LW20.PDF
Other
  • T42112LW10.PDF
CARACTÈRISTIQUES
  • Code Produit : T42112LW20
  • Couleur: Anthracite Grey
  • Installation: Applique
  • Matériaux: Aluminum, composite technopolymer, methacrylate
  • Séries: Architectural Outdoor
  • Environnement: Outdoor
  • Type de projet: Urbain, Extérieurs, Résidentiels
  • dessiné par: Ernesto Gismondi
LUMINAIRE
  • Watt: 7W
  • Tension: 220V-240V
  • Flux Lumineux (lm): 100lm
  • CCT: 3000K
  • Efficiency: 22%
  • Efficacy: 14.26lm/W

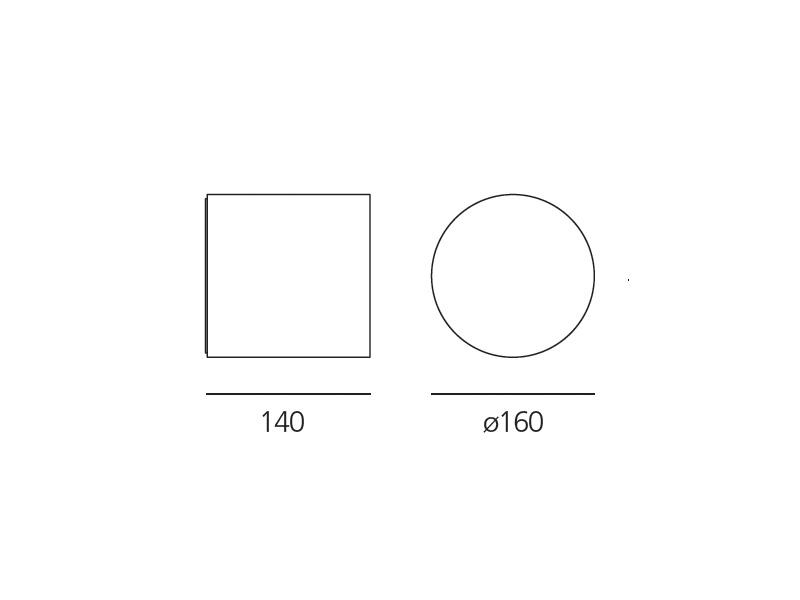

DIMENSIONS
  • Largeur: 140 mm
  • Diamètre: 160 mm
  • Résistance à l’impact: IK10
  • Test au fil incandescent: 650°
SOURCES INCLUES
  • Catégorie: Led
  • Nombre: 1
  • Watt: 7W
  • Flux Lumineux (lm): 357lm
  • Température de Couleur (K): 3000K
  • CRI: 80 typ
  • Color Tolerance: 4SDCM
  • Efficacy: 85lm/W
  • Service Life: L70(14K)>81600
Téléchargez tous Fiche technique PDF
