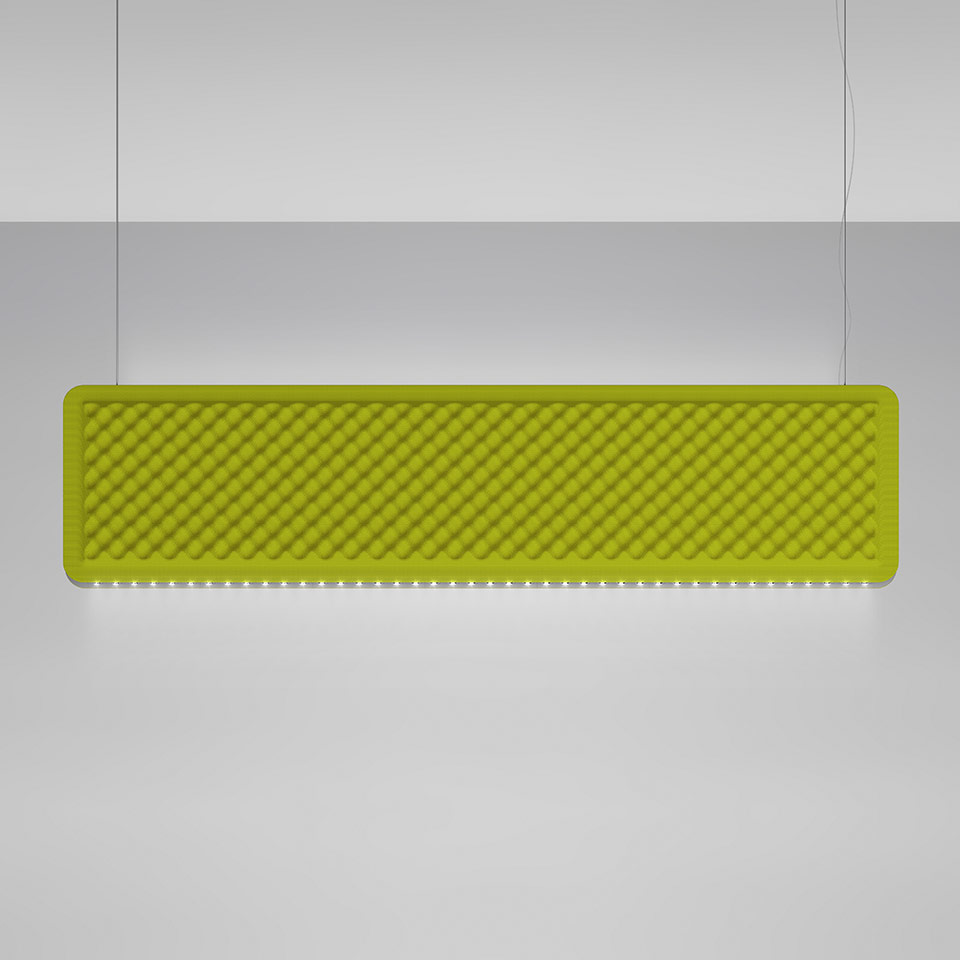

Eggboard Baffle - 1600x400 - Suspension - Direct Sharp + Indirect Diffused - 3000K - Dimmable DALI - Green

IP20 Dimmable:

Downloadable files

Silhouette
  • Eggboard-Baffle-1600x400.jpg
Instructions
  • Y513001255_Eggboard Buffle_KIT BLL.PDF
  • Y513001123A_EGGBOARD BAFFLE_ALL VERSIONS.pdf
3D BIM Revit
  • Artemide Eggboard Baffle EN.zip
  • Artemide Eggboard Baffle EN_Low Version.zip
IES Europe
  • AZ22251.IES
IES USA
  • AZ22251.IES
LDT File
  • AZ22251.LDT
LDT PDF
  • AZ22251.PDF
CARACTÈRISTIQUES
  • Code Produit : AZ22251
  • Couleur: Green
  • Installation: Plafonnier, Suspension
  • Séries: Architectural Indoor
  • Environnement: Indoor
  • dessiné par: Progetto CMR - Giacobone & Roj
LUMINAIRE
  • Watt: 53W
  • Flux Lumineux (lm): 4787lm
  • CCT: 3000K
  • Efficiency: 71%
  • Efficacy: 90.32lm/W
  • CRI: 80
  • Dimmable Typology: Dali

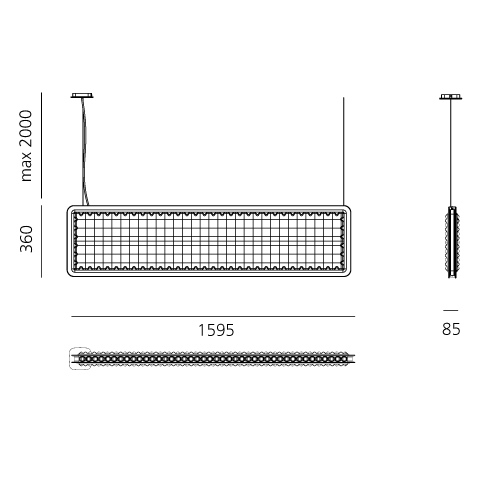

DIMENSIONS
  • Longueur : 1600 mm
  • Largeur: 80 mm
  • Hauteur: 400 mm
SOURCES INCLUES
  • Catégorie: Led
  • Nombre: 1
  • Watt: 20W
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L90 (10K) > 60000h
  • Catégorie: Led
  • Nombre: 1
  • Watt: 41W
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L90 (10K) > 60000h
Remarques

220/240Vac 50/60Hz electronic ballast included.

For the suspension version, order the ceiling rose or the BLL DALI interface for APP separately.

For the ceiling version, order only the BLL DALI interface for APP separately.

UGR<19

ACCESSOIRES
APP power supply kit for suspension + 1 power cable L 2100mm
AZ92100
BLL DALI interface for APP
AZ92200
Canopy + 1 power cable L 2100mm - Dimmable DALI - Only for suspension
AZ92000
Téléchargez tous Fiche technique PDF
