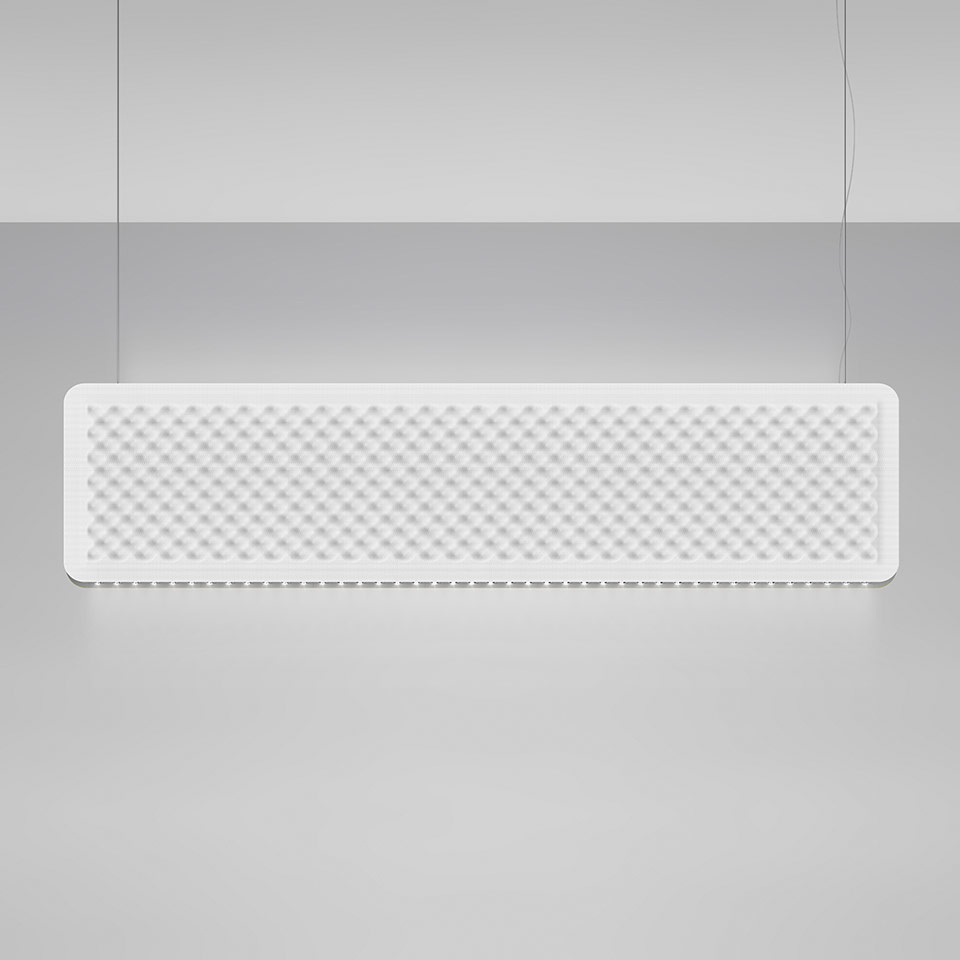

Eggboard Baffle - 1600x400 - Suspension/Ceiling - Direct Sharp - 4000K - Dimmable DALI - White Cream

IP20 Dimmable:
Silhouette
  • Eggboard-Baffle-1600x400.jpg
Instructions
  • Y513001255_Eggboard Buffle_KIT BLL.PDF
  • Y513001123A_EGGBOARD BAFFLE_ALL VERSIONS.pdf
3D BIM Revit
  • Artemide Eggboard Baffle EN.zip
  • Artemide Eggboard Baffle EN_Low Version.zip
IES Europe
  • AZ21421.IES
IES USA
  • AZ21421.IES
LDT File
  • AZ21421.LDT
LDT PDF
  • AZ21421.PDF
CARACTÈRISTIQUES
  • Code Produit : AZ21421
  • Couleur: White Cream
  • Installation: Suspension
  • Séries: Architectural Indoor
  • Environnement: Indoor
  • dessiné par: Progetto CMR - Giacobone & Roj
LUMINAIRE
  • Watt: 21W
  • Flux Lumineux (lm): 1521lm
  • CCT: 4000K
  • Efficiency: 71%
  • Efficacy: 72.42lm/W
  • CRI: 90
  • Dimmable Typology: Dali
DIMENSIONS
  • Longueur : 1600 mm
  • Largeur: 80 mm
  • Hauteur: 400 mm
SOURCES INCLUES
  • Catégorie: Led
  • Nombre: 1
  • Watt: 20W
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L90 (10K) > 60000h
Remarques

220/240Vac 50/60Hz electronic ballast included.

For the suspension version, order the ceiling rose or the BLL DALI interface for APP separately.

UGR<19

ACCESSOIRES
APP power supply kit for suspension + 1 power cable L 2100mm
AZ92100
BLL DALI interface for APP
AZ92200
Canopy + 1 power cable L 2100mm - Dimmable DALI - Only for suspension
AZ92000
