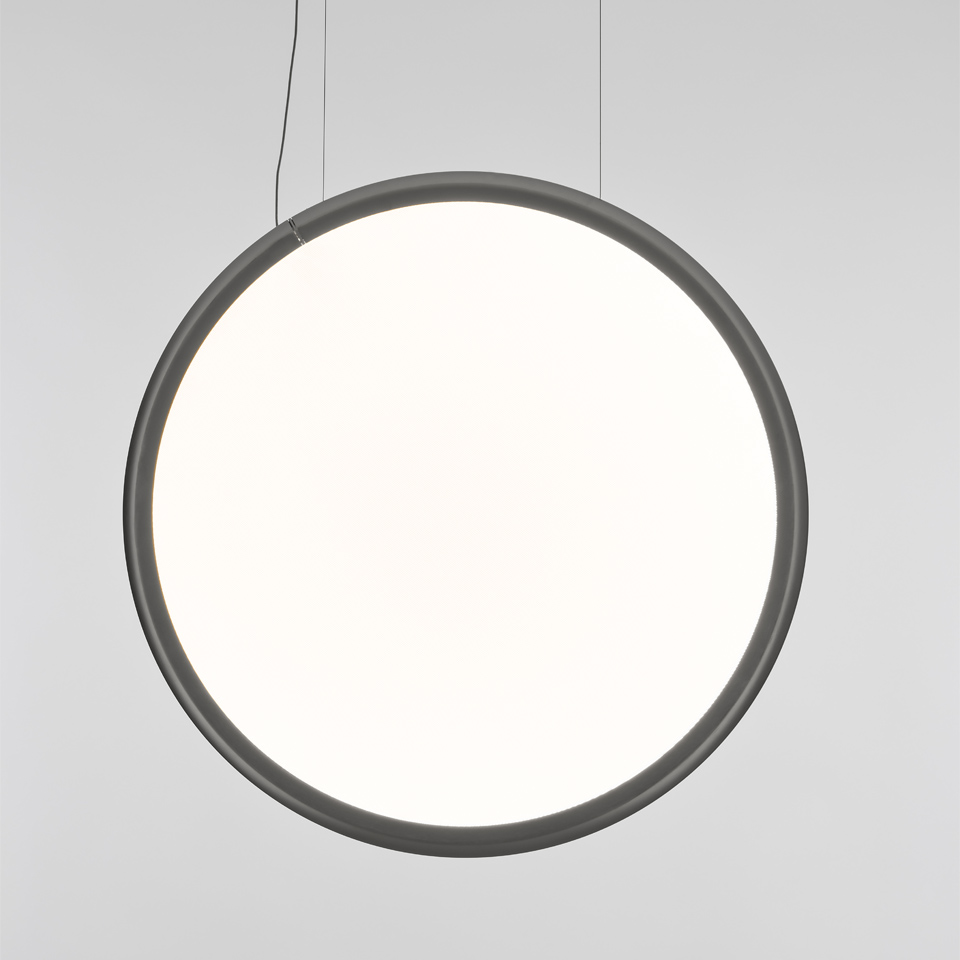

Discovery Vertical 140 - Satinized aluminium - App Compatible

IP20 Dimmable:

Downloadable files

2D Model
  • Discovery_Vertical_140.dwg
  • Discovery_Vertical_140.dxf
3D Model
  • Discovery_Vertical_140.3ds
  • Discovery_Vertical_140.stp
Silhouette
  • Sil Discovery-Vertical-140.jpg
Instructions
  • Y513001026A--FOGLIO ISTRUZ. DISCOVERY VERTICAL 140.pdf
  • Y513001035A-Artemide APP.pdf
3D BIM Revit
  • Artemide Discovery Vertical EN.zip
  • Artemide Discovery Vertical EN_Low Version.zip
IES Europe
  • 1994010APP.IES
IES USA
  • 1994010APP.IES
LDT File
  • 1994010APP.LDT
LDT PDF
  • 1994010APP.PDF
CARACTÈRISTIQUES
  • Code Produit : 1994010APP
  • Couleur: Satinized aluminium
  • Installation: Suspension
  • Matériaux: Technopolymer, aluminium
  • Séries: Design Collection
  • Environnement: Indoor
  • dessiné par: Ernesto Gismondi
LUMINAIRE
  • Watt: 80W
  • Flux Lumineux (lm): 6762lm
  • CCT: 3000K
  • Efficiency: 65%
  • Efficacy: 84.52lm/W
  • CRI: 90
  • Dimmable Typology: Push & APP

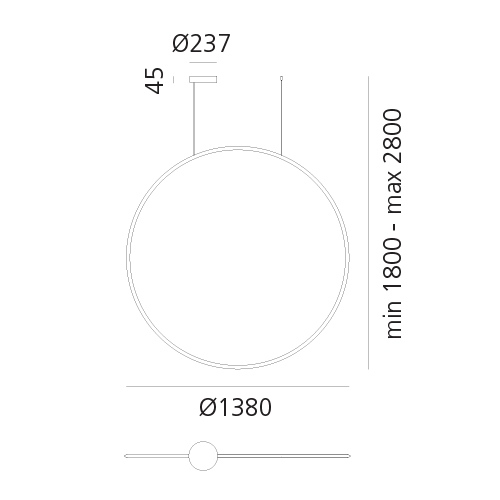

DIMENSIONS
  • Largeur: 17 mm
  • Diamètre: 1380 mm
  • Diamètre de la base: 237 mm
  • Hauteur max. du plafond: 2800 mm
SOURCES INCLUES
  • Catégorie: Led
  • Nombre: 1
  • Watt: 71W
  • Flux Lumineux (lm): 10325lm
  • Température de Couleur (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L90 (6K) 50000h
Remarques

Respects the UGR workplace standards in any position in which it is installed.

The APP driver can not be controlled by DALI dimming system and viceversa.

ACCESSOIRES
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
