Discovery Space Spot Square - TW - Black

IP20 Dimmable:

Downloadable files

2D Model
  • Discovery Spot Square.dwg
  • Discovery Spot Square.dxf
3D Model
  • Discovery Spot Square.3ds
  • Discovery Spot Square.stp
Silhouette
  • Discovery Spot Square.jpg
Instructions
  • Y513001578A FOGLIO ISTRUZ.DISCOVERY SPOT TW.pdf
IES Europe
  • 2030030APP_N.IES
  • 2030030APP_SPOT VECTOR 16.IES
  • 2030030APP_SPOT VECTOR 22.IES
  • 2030030APP_W.IES
IES USA
  • 2030030APP_N.IES
  • 2030030APP_SPOT VECTOR 16.IES
  • 2030030APP_SPOT VECTOR 22.IES
  • 2030030APP_W.IES
LDT File
  • 2030030APP_N.LDT
  • 2030030APP_SPOT VECTOR 16.LDT
  • 2030030APP_SPOT VECTOR 22.LDT
  • 2030030APP_W.LDT
LDT PDF
  • 2030030APP_N.PDF
  • 2030030APP_SPOT VECTOR 16.PDF
  • 2030030APP_SPOT VECTOR 22.PDF
  • 2030030APP_W.PDF
CARACTÈRISTIQUES
  • Code Produit : 2030030APP
  • Couleur: Black
  • Installation: Suspension
  • Matériaux: Technopolymer, aluminium
  • Séries: Design Collection
  • dessiné par: Ernesto Gismondi
LUMINAIRE
Discovery
  • Watt: 42W
  • Tension: 220-240V
  • Flux Lumineux (lm): Warm 2581lm Cold 2749lm
  • CCT: 2700K - 6500K
  • Efficiency: 57%
  • Efficacy: 61.44lm/W
  • CRI: 80
  • Dimmable Typology: APP
Vector Spot 22
  • Watt: 18W
  • Tension: 220-240V
  • Flux Lumineux (lm): 1655lm
  • CCT: 3000K
  • Efficiency: 73%
  • Efficacy: 91.94lm/W
  • CRI: 90
  • Dimmable Typology: APP
Vector Spot 16
  • Watt: 18W
  • Tension: 220-240V
  • Flux Lumineux (lm): 1619lm
  • CCT: 3000K
  • Efficiency: 71%
  • Efficacy: 89.94lm/W
  • CRI: 90
  • Dimmable Typology: APP

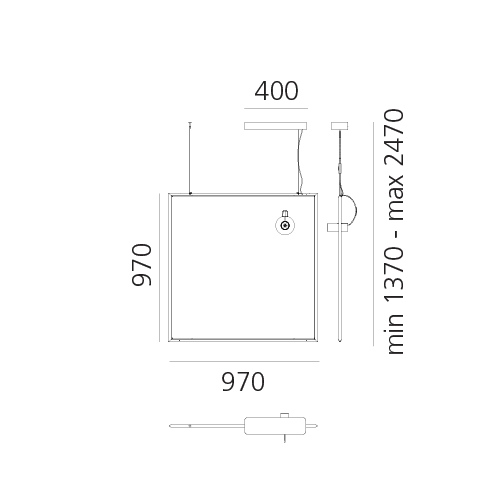

DIMENSIONS
  • Longueur : 970 mm
  • Hauteur: 970 mm
  • Hauteur max. du plafond: 2470 mm
SOURCES INCLUES
  • Catégorie: Led TW
  • Nombre: 1
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L90 (6K) 50000h
ACCESSOIRES
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
