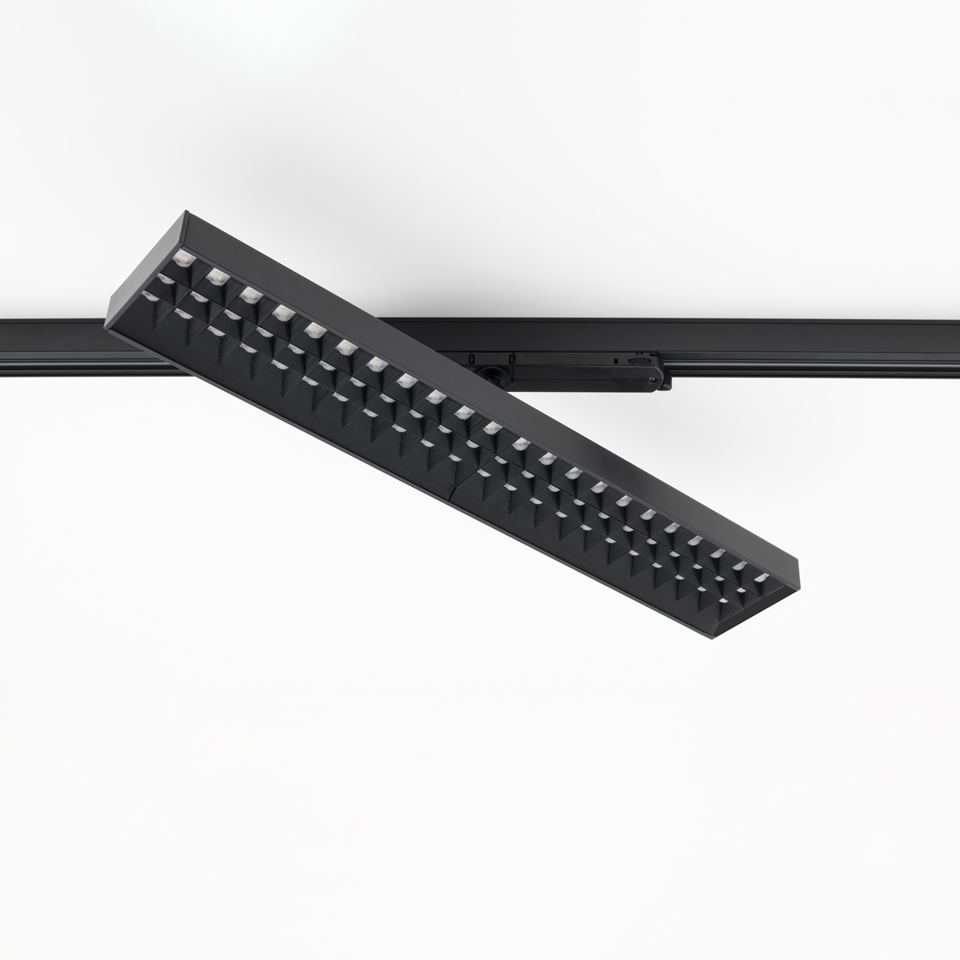

Hoy Refractive 3-Phase Track - 4000K - Black

IP20 Dimmable:

Downloadable files

2D Model
  • Hoy system refractive_3 phase track.dwg
  • Hoy system refractive_3 phase track.dxf
3D Model
  • Hoy refractive_3 phase track.3ds
  • Hoy refractive_3 phase track.stp
Silhouette
  • Hoy refractive 3phase.jpg
Instructions
  • Y513002026 F_IS HOY REFRACTIVE 3-PHASE TRACK.pdf
3D BIM Revit
  • Artemide Hoy 3-Phase Track EN_Low Version.zip
IES Europe
  • CF30104+CF50001.IES
  • CF30104+CF50004.IES
IES USA
  • CF30104+CF50001.IES
  • CF30104+CF50004.IES
LDT File
  • CF30104+CF50004.LDT
  • CF30104+CF50001.LDT
LDT PDF
  • CF30104+CF50004.PDF
  • CF30104+CF50001.PDF
CARACTÈRISTIQUES
  • Code Produit : CF30104
  • Couleur: Black
  • Installation: Projecteur
  • Séries: Architectural Indoor
  • dessiné par: Foster + Partners Industrial Design
LUMINAIRE
  • Watt: 16W
  • Tension: 220-240V
  • Flux Lumineux (lm): 2080lm
  • CCT: 4000K
  • Efficiency: 88%
  • Efficacy: 130.00lm/W
  • CRI: 90
  • Dimmable Typology: Dali

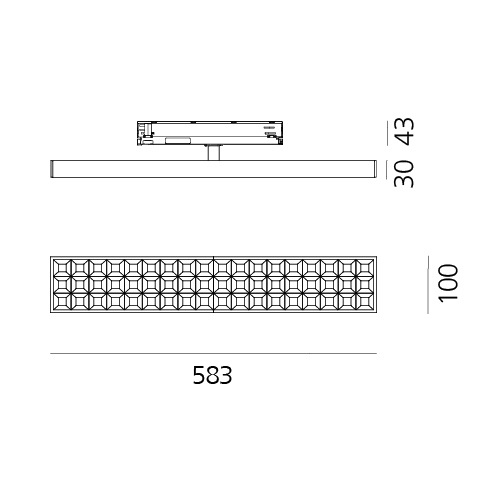

DIMENSIONS
  • Longueur : 583 mm
  • Largeur: 100 mm
  • Hauteur: 138 mm
Remarques

220/240Vac 50/60Hz electronic ballast included.
Louvre to be ordered separately.

The compatibility may become invalid when the critical track dimension is modified by the brand owner in case of engineering change or optimization in the future.

ACCESSOIRES
Hoy Refractive Louvres - 576mm - White
CF50001
Hoy Refractive Louvres - 576mm - Black
CF50004
Téléchargez tous Fiche technique PDF
