Febe Suspension 2700K - White

IP20 Dimmerable:

Downloadable files

2D Model
  • Febe suspension.dwg
  • Febe suspension.dxf
3D Model
  • Febe suspension.3ds
  • Febe suspension.stp
Silhouette
  • Febe_Suspension.jpg
Instructions
  • Y513000931B F_IS FEBE SUSPENSION.pdf
DiaLux ULD File
  • 0242W00A.uld
IES Europe
  • 0242W00A.IES
IES USA
  • 0242W00A.IES
LDT File
  • 0242W00A.LDT
LDT PDF
  • 0242W00A.PDF
FEATURES
  • Product Code: 0242W00A
  • Colour: White
  • Installation: Suspension
  • Material: Methacrylare, polycarbonate
  • Series: Design Collection
  • Environment: Indoor
  • design by: Ernesto Gismondi
LUMINAIRE
  • Watt: 30W
  • Voltage: 220-240V
  • Delivered lumen output: 2182lm
  • CCT: 2700K
  • Efficiency: 85%
  • Efficacy: 72.73lm/W
  • CRI: 90
  • Dimmable Typology: Push

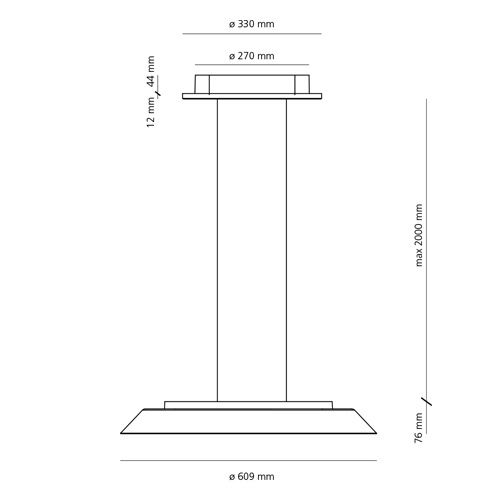

DIMENSIONS
  • Width: 76 mm
  • Diameter: 610 mm
  • Base Width: 44 mm
  • Base Diameter: 270 mm
  • Max Height from ceiling: 2000 mm
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led
  • Number: 4
  • Watt: 6.20W
  • Delivered lumen output: 630lm
  • Color temperature (K): 2700K
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Efficacy: 102lm/W
  • Service Life: 50000-L70
Download all Data sheet PDF
