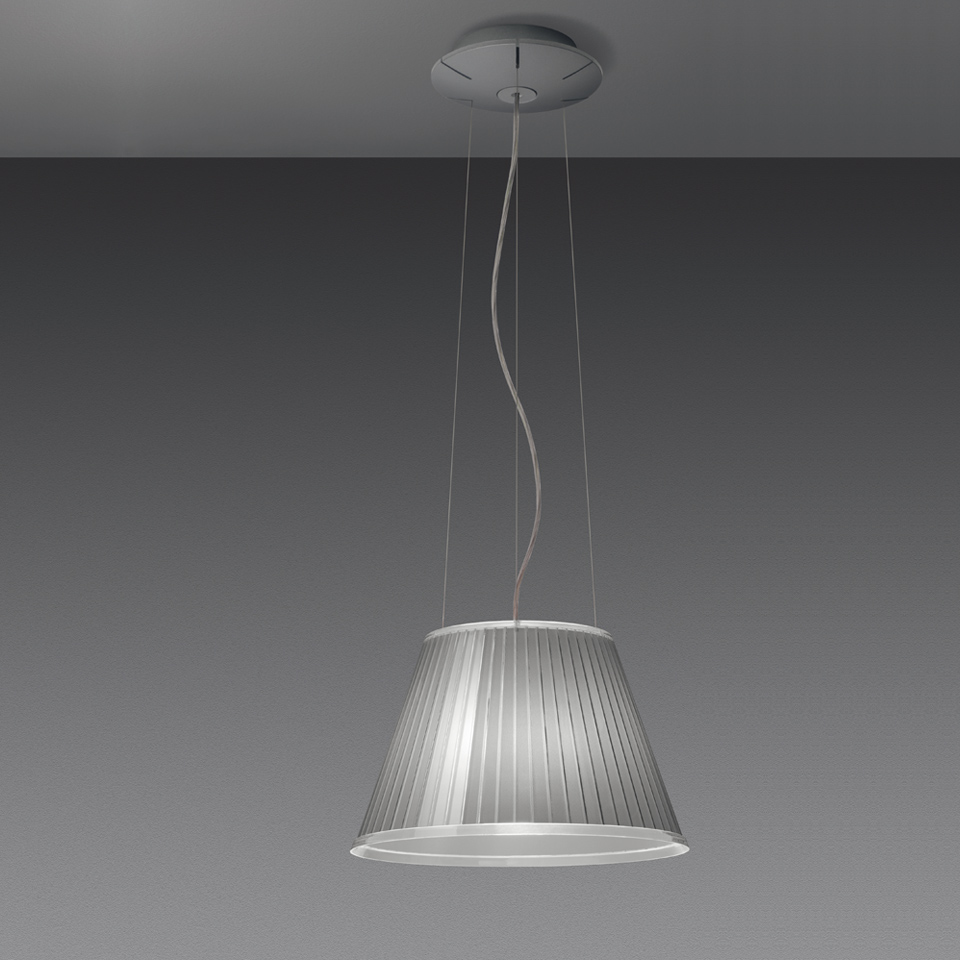

Choose Suspension - White

IP20 Dimmerable:

Downloadable files

2D Model
  • Choose_Suspension_Halo.dwg
  • Choose_Suspension_Halo.dxf
3D Model
  • Choose_Suspension_Halo.3ds
  • Choose_Suspension_Halo.stp
Silhouette
  • Choose sospensione sil.jpg
Instructions
  • Y513000001D F_IS CHOOSE SUSPENSION.pdf
IES Europe
  • 1123020A.IES
IES USA
  • 1123020A.IES
LDT File
  • 1123020A.LDT
LDT PDF
  • 1123020A.PDF
FEATURES
  • Product Code: 1123110A
  • Colour: White
  • Installation: Suspension
  • Material: Parchment paper, polycarbonate
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality
  • Emission: Direct Spot
  • design by: Matteo Thun & Partners
LUMINAIRE *
  • Watt: 12W
  • Voltage: 220V-240V
  • Delivered lumen output: 1291lm

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

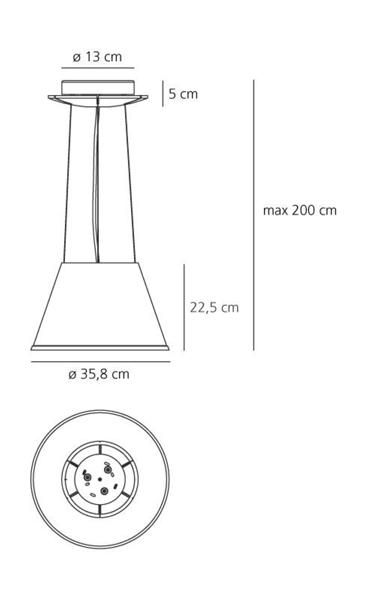

DIMENSIONS
  • Height: 225 mm
  • Diameter: 358 mm
  • Base Diameter: 130 mm
  • Max Height from ceiling: 2000 mm
  • Glow Wire Test: 750°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 12W
  • Socket: E27
Download all Data sheet PDF
